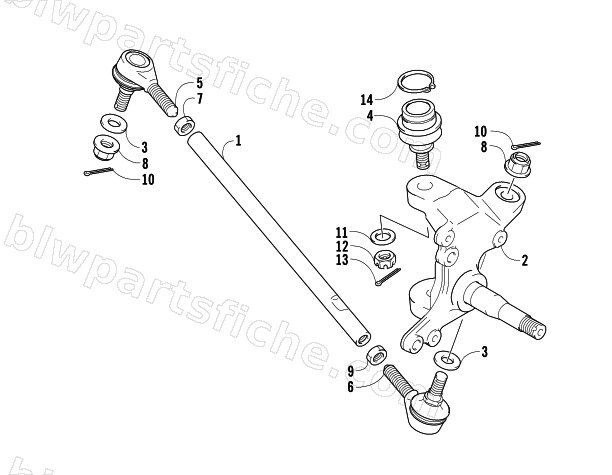

2004 Arctic Cat 400 DVX — TIE ROD ASSEMBLY
2004 400 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3405-009 | TIE-ROD,STEERING | 1 | $47.95 | |
| 2 | 3405-005 | KNUCKLE,STEERING,R | 1 | $501.95 | |
| 2 | 3405-006 | KNUCKLE,STEERING,L | 1 | $486.95 | |
| 3 | 3423-681 | WASHER, ROD END LOCK | 1 | $5.95 | |
| 4 | 3405-004 | END,KNUCKLE STRG UPPER | 1 | $122.95 | |
| 5 | 3405-008 | END COMP,ROD,L | 1 | $122.95 | |
| 6 | 3405-007 | END COMP,ROD,R | 1 | $118.95 | |
| 7 | 3423-664 | NUT, TIE ROD LH | 1 | $1.50 | |
| 8 | 3423-881 | NUT,ROD END | 1 | $3.95 | |
| 9 | 3423-665 | NUT, TIE ROD RH | 1 | $3.57 | |
| 10 | 3423-877 | COTTER PIN,ROD END | 1 | $1.95 | |
| 11 | 3007-716 | WASHER,12MM | 1 | $3.16 | |
| 12 | 3423-869 | NUT KNUCKLE END | 1 | $3.02 | |
| 13 | 0693-683 | N,COTTER | 1 | $2.89 | |
| 14 | 3423-913 | CIRCLIP,FASTENER | 1 | $5.95 |
