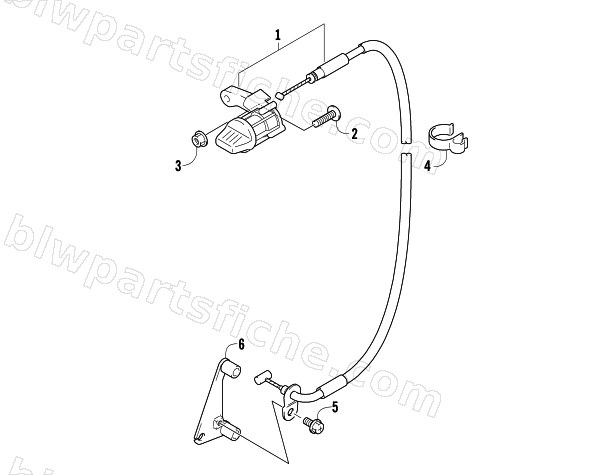

2004 Arctic Cat 400 DVX — REVERSE LOCK ASSEMBLY
2004 400 DVX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3502-026 | KNOB SET, REVERSE LOCK | 1 | $203.95 | |
| 2 | 3423-906 | SCREW | 1 | $2.61 | |
| 3 | 3006-700 | NUT,PULLEY | 1 | $2.95 | |
| 4 | 3423-734 | CLIP | 1 | $3.44 | |
| 5 | 3423-604 | BOLT | 1 | $1.95 | |
| 6 | 3406-150 | BRACKET, REVERSE CABLE | 1 | $37.95 |
