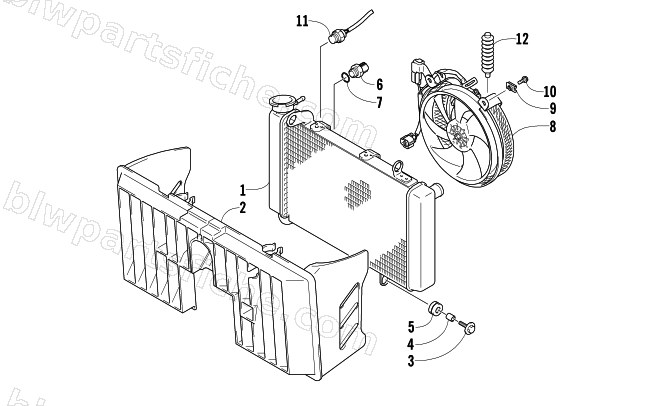

RADIATOR ASSEMBLY
2004 400 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3413-026 | RADIATOR ASSY,WATER | 1 | $1,112.95 | |
| 2 | 3413-028 | COVER COMP,RADIATOR | 1 | $108.95 | |
| 3 | 3423-657 | BOLT, OIL TANK | 1 | $2.61 | |
| 4 | 3423-692 | SPACER, OIL TANK | 1 | $4.40 | |
| 5 | 3423-716 | CUSHION, OIL TANK | 1 | $5.92 | |
| 6 | 3409-024 | SWITCH COMP,ENGINE COOLING FAN | 1 | $114.95 | |
| 7 | 3423-576 | O RING | 1 | $4.82 | |
| 8 | 3413-035 | FAN ASSY, RADIATOR | 1 | $695.95 | |
| 9 | 3423-741 | NUT | 1 | $3.57 | |
| 10 | 3007-457 | BOLT | 1 | $3.16 | |
| 11 | 3409-035 | SWITCH ASSY,WATER TEMP | 1 | $163.95 | |
| 12 | 3402-937 | BOOT, RADIATOR FAN MOTOR | 1 | $17.95 |
