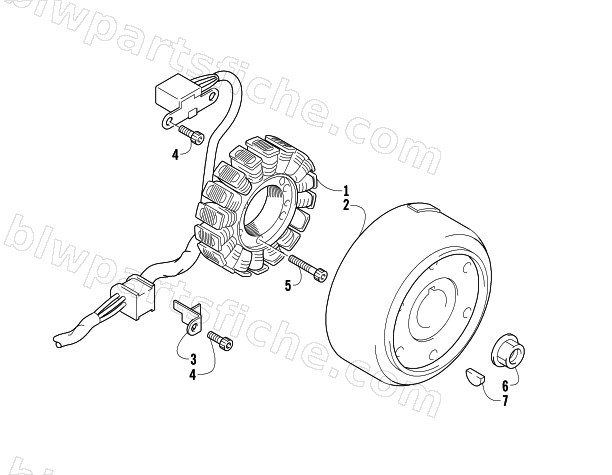

MAGNETO ASSEMBLY
2004 400 DVX
Scroll / pinch to zoom · drag to pan · double-click resets
| # |
Part No. |
Description |
Qty |
Price |
|
| 1 |
3409-026 |
STATOR ASSY,MAGNETO |
1 |
$703.95 |
|
| 2 |
3430-060 |
ROTOR ASSY |
1 |
$754.95 |
|
| 3 |
3430-061 |
CLAMP, MAGNETO LEAD NO.1 |
1 |
$8.21 |
|
| 4 |
3007-519 |
BOLT,PULSER COIL |
1 |
$3.16 |
|
| 5 |
3003-307 |
BOLT,5X20 |
1 |
$4.95 |
|
| 6 |
3423-742 |
NUT, MAGNETO ROTOR |
1 |
$12.35 |
|
| 7 |
3004-540 |
KEY,WOODRUFF,M4 |
1 |
$6.34 |
|
