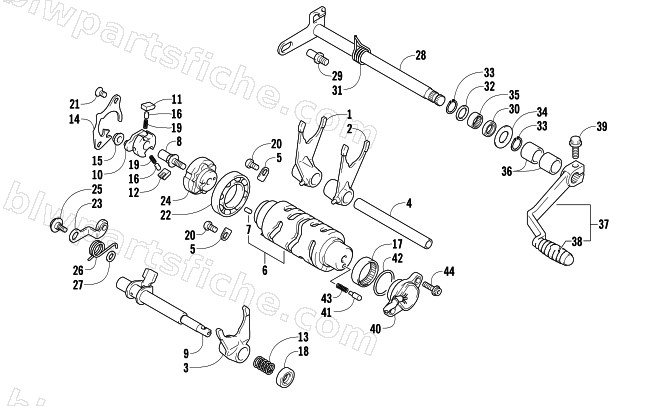

GEAR SHIFTING ASSEMBLY
2004 400 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3446-397 | FORK, GEAR SHIFT NO.1 | 1 | $118.95 | |
| 2 | 3446-398 | FORK, GEAR SHIFT NO.2 | 1 | $118.95 | |
| 3 | 3446-399 | FORK, GEAR SHIFT NO.3 | 1 | $122.95 | |
| 4 | 3402-958 | SHAFT, GEAR FORK NO.1 | 1 | $35.95 | |
| 5 | 3446-031 | RETAINER, BEARING | 1 | $5.78 | |
| 6 | 3402-953 | CAM, GEAR SHIFT | 1 | $244.95 | |
| 7 | 3423-114 | MM (DOWEL) | 1 | $2.06 | |
| 8 | 3446-369 | PIN,SHIFT CAM DRIVEN GEAR | 1 | $26.95 | |
| 9 | 3446-370 | SHAFT,REVERSE LOCK | 1 | $91.95 | |
| 10 | 3402-954 | SHIFTER, GEAR SHIFT CAM | 1 | $100.95 | |
| 11 | 3446-371 | PAWL,GEAR SHIFT,NO.1 | 1 | $20.63 | |
| 12 | 3446-372 | PAWL,GEAR SHIFT,NO.2 | 1 | $20.63 | |
| 13 | 3446-373 | SPRING,REVERSE LOCK SHAFT | 1 | $6.47 | |
| 14 | 3402-955 | LIFTER, GEAR SHIFT PAWL | 1 | $45.95 | |
| 15 | 3402-132 | SPACER,7MM | 1 | $10.97 | |
| 16 | 3423-708 | PIN, SHIFT POLE (5X8) | 1 | $3.02 | |
| 17 | 3402-907 | BEARING, SHIFT CAM LH | 1 | $45.95 | |
| 18 | 3402-911 | SEAL, REVERSE LOCK | 1 | $13.73 | |
| 19 | 3446-389 | SPRING, SHIFT PAWL RETURN | 1 | $3.02 | |
| 20 | 3423-370 | SCREW,6MM | 1 | $2.61 | |
| 21 | 3423-018 | SCREW, 6X12 | 1 | $2.61 | |
| 22 | 3402-186 | BEARING,BALL(25X42X9) | 1 | $71.95 | |
| 23 | 3402-956 | STOPPER, SHIFT CAM | 1 | $30.95 | |
| 24 | 3402-957 | PLATE, SHIFT CAM STOPPER | 1 | $91.95 | |
| 25 | 3423-652 | BOLT, CAM STOPPER ARM | 1 | $2.61 | |
| 26 | 3446-374 | SPRING,GEAR SHIFT CAM STOPPER | 1 | $9.59 | |
| 27 | 3423-615 | WASHER, SHIFT CAM | 1 | $2.95 | |
| 28 | 3402-959 | SHAFT, GEAR SHIFT | 1 | $118.95 | |
| 29 | 3402-960 | STOPPER, GEAR SHIFT ARM | 1 | $10.97 | |
| 30 | 3402-068 | OIL SEAL,M13X22X6 | 1 | $17.87 | |
| 31 | 3446-390 | SPRING, SHIFT SHAFT RETURN | 1 | $17.87 | |
| 32 | 3423-700 | WASHER, GEAR SHAFT | 1 | $4.13 | |
| 33 | 3423-546 | CIRCLIP, CL RLSE ARM | 1 | $5.95 | |
| 34 | 3423-678 | WASHER, GEAR SHIFT LH | 1 | $5.51 | |
| 35 | 3402-385 | BEARING,REAR CUSHION LEVER,FRONT,NEEDLE, | 1 | $37.95 | |
| 36 | 3423-695 | SPACER (14X20X17.5) | 1 | $9.59 | |
| 37 | 3446-375 | LEVER ASSY,GEAR SHIFT | 1 | $108.95 | |
| 38 | 3446-376 | RUBBER,GEAR SHIFT PEDAL | 1 | $13.73 | |
| 39 | 3007-409 | BOLT | 1 | $3.16 | |
| 40 | 3509-006 | BASE ASSY,GEAR SHIFT TERM | 1 | $227.95 | |
| 41 | 3423-044 | PIN,CAM GEAR,5MM | 1 | $5.37 | |
| 42 | 3423-273 | O RING,D:2.4,ID:26.2 | 1 | $6.47 | |
| 43 | 3402-087 | SPRING,COMPRESSION,M4 | 1 | $3.30 | |
| 44 | 3423-418 | BOLT, BASE ASSY | 1 | $3.30 |
