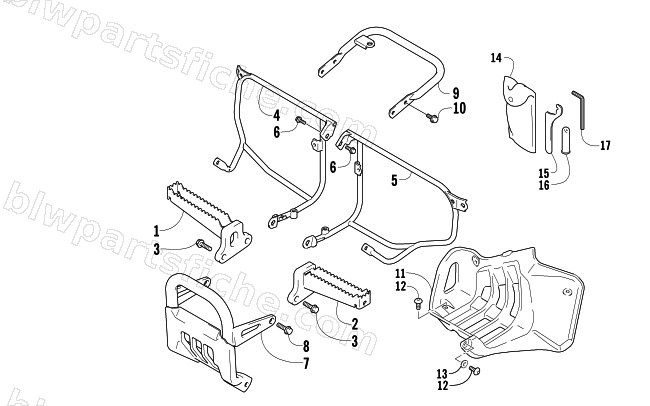

2004 Arctic Cat 400 DVX — FOOTREST ASSEMBLY
2004 400 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3406-009 | FOOTREST COMP,R | 1 | $140.95 | |
| 2 | 3406-010 | FOOTREST COMP,L | 1 | $140.95 | |
| 3 | 3423-636 | BOLT | 1 | $5.95 | |
| 4 | 3406-136 | REINF,MUD GUARD,R | 1 | $260.95 | |
| 5 | 3406-164 | REINF,MUD GUARD,L | 1 | $274.95 | |
| 6 | 3423-633 | BOLT, UPPER | 1 | $2.61 | |
| 7 | 3406-015 | GRIP COMP,FRONT | 1 | $341.95 | |
| 8 | 3007-382 | BOLT | 1 | $3.16 | |
| 9 | 3406-014 | GRIP COMP,REAR | 1 | $122.95 | |
| 10 | 3007-432 | BOLT | 1 | $3.44 | |
| 11 | 3406-070 | MUD GUARD,FOOTREST,R(BLACK) | 1 | $156.95 | |
| 11 | 3406-071 | MUD GUARD,FOOTREST,L(BLACK) | 1 | $151.95 | |
| 12 | 3423-661 | SCREW, EXHAUST PIPE COVER | 1 | $3.57 | |
| 13 | 3423-690 | WASHER | 1 | $3.30 | |
| 14 | 3436-017 | TOOL ASSY | 1 | $67.95 | |
| 15 | 3436-019 | CLAMP, WRENCH | 1 | $26.95 | |
| 16 | 3436-020 | GAUGE, AIR | 1 | $108.95 | |
| 17 | 3436-018 | HEXAGON SPANNER, 4 | 1 | $12.35 |
