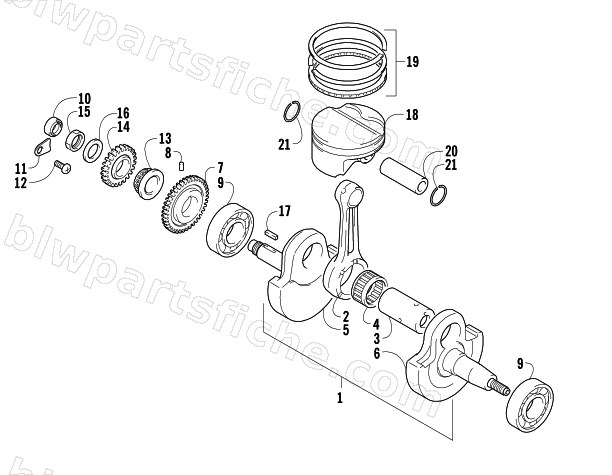

CRANKSHAFT ASSEMBLY
2004 400 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3502-035 | CRANKSHAFT ASSY | 1 | $908.95 | |
| 2 | 3502-012 | CONNROD COMP | 1 | $260.95 | |
| 3 | 3502-014 | PIN COMP,CRANK | 1 | $129.95 | |
| 4 | 3403-230 | BEARING 35X43X22 | 1 | $129.95 | |
| 5 | 3402-922 | CRANKSHAFT, RH | 1 | $573.95 | |
| 6 | 3402-923 | CRANKSHAFT, LH | 1 | $431.95 | |
| 7 | 3402-926 | GEAR, BALANCER DRIVE | 1 | $196.95 | |
| 8 | 3423-047 | PIN,M5X8 | 1 | $3.95 | |
| 9 | 3402-904 | BEARING | 1 | $122.95 | |
| 10 | 3402-910 | OIL SEAL, RH (14X24X6) | 1 | $20.95 | |
| 11 | 3402-952 | RETAINER, OIL SEAL RH | 1 | $6.95 | |
| 12 | 3007-574 | SCREW,6X12 | 1 | $2.47 | |
| 13 | 3502-017 | SPROCKET,CAM CHAIN DRIVE | 1 | $131.95 | |
| 14 | 3402-938 | GEAR, PRIMARY DRIVE | 1 | $118.95 | |
| 15 | 3423-253 | NUT,18MM | 1 | $12.35 | |
| 16 | 3423-684 | WASHER | 1 | $4.13 | |
| 17 | 3006-890 | KEY, GEAR | 1 | $9.59 | |
| 18 | 3402-846 | PISTON | 1 | $244.95 | |
| 19 | 3502-011 | RING SET,PISTON | 1 | $94.95 | |
| 20 | 3402-847 | PIN,PISTON | 1 | $48.95 | |
| 21 | 3003-439 | CIRCLIP,PISTON PIN,M20 | 1 | $3.16 |
