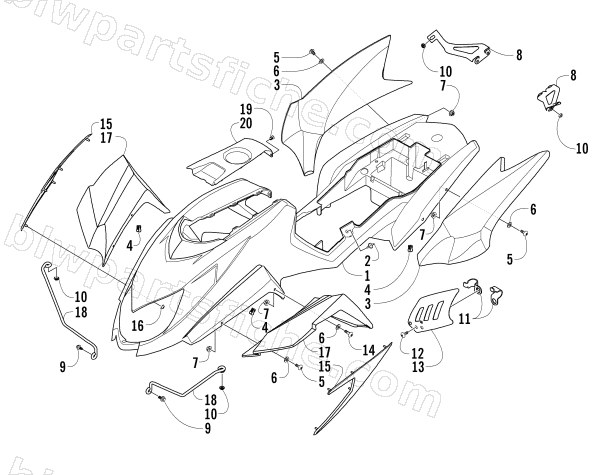

BODY PANEL ASSEMBLY
2004 400 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-458 | BODY,MAIN-BLACK-ROUTED | 1 | $410.95 | |
| 1 | 2506-457 | BODY,MAIN-RED-ROUTED | 1 | $549.95 | |
| 2 | 0423-494 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.95 | |
| 3 | 1406-451 | FENDER,REAR-RH-RED | 1 | $244.95 | |
| 3 | 1406-452 | FENDER,REAR-LH-RED | 1 | $244.95 | |
| 3 | 1406-494 | FENDER,REAR-RH-LIME GREEN | 1 | $244.95 | |
| 3 | 1406-495 | FENDER,REAR-LH-LIME GREEN | 1 | $244.95 | |
| 4 | 0423-459 | CLIP,FENDER MOUNTING | 1 | $10.97 | |
| 5 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 6 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 7 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 8 | 1506-306 | FENDER MOUNT-RH-PAINTED (PLAT) | 1 | $46.95 | |
| 8 | 1506-305 | FENDER MOUNT-LH-PAINTED (PLAT) | 1 | $46.95 | |
| 9 | 8408-812 | SCREW,CAP-HFH M8X1.25X12 CL8.8 Z&Y | 1 | $1.78 | |
| 10 | 0423-357 | NUT, STAMPED-1/4" (SD 25001 SOH) | 1 | $0.95 | |
| 11 | 1506-410 | CLAMP,FOOT GUARD-WELDT | 1 | $64.95 | |
| 12 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 13 | 1506-411 | GUARD,FOOT-RH-PAINTED | 1 | $18.95 | |
| 13 | 1506-412 | GUARD,FOOT-LH-PAINTED | 1 | $18.95 | |
| 14 | 8471-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z&B | 1 | $0.68 | |
| 15 | 1406-488 | PANEL,TRIM-RH-RED | 1 | $79.95 | |
| 15 | 1406-489 | PANEL,TRIM-LH-RED | 1 | $79.95 | |
| 15 | 1406-490 | PANEL,TRIM-RH-LIME GREEN | 1 | $90.95 | |
| 15 | 1406-491 | PANEL,TRIM-LH-LIME GREEN | 1 | $93.95 | |
| 15 | 1406-447 | PANEL,TRIM-RH-BLACK | 1 | $79.95 | |
| 15 | 1406-448 | PANEL,TRIM-LH-BLACK | 1 | $79.95 | |
| 16 | 0423-489 | NUT,STAMPED-5/32 | 1 | $0.65 | |
| 17 | 1406-449 | FENDER,FRONT-RH-RED | 1 | $187.95 | |
| 17 | 1406-450 | FENDER,FRONT-LH-RED | 1 | $206.95 | |
| 17 | 1406-492 | FENDER,FRONT-RH-LIME GREEN | 1 | $206.95 | |
| 17 | 1406-493 | FENDER,FRONT-LH-LIME GREEN | 1 | $187.95 | |
| 18 | 1506-301 | WIREFORM, RH-PAINTED (PLATNUM) | 1 | $37.95 | |
| 18 | 1506-302 | WIREFORM,LH-PAINTED (PLATNUM) | 1 | $37.95 | |
| 19 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 20 | 1406-487 | COVER,TANK-BLACK | 1 | $64.95 | |
| 20 | 2506-461 | COVER,TANK-RED-ROUTED | 1 | $47.95 |
