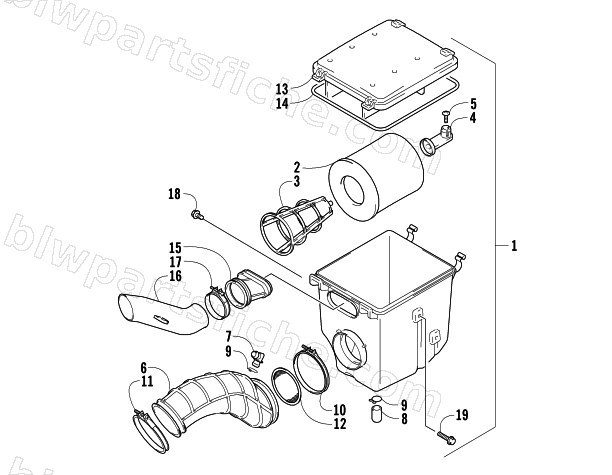

AIR CLEANER ASSEMBLY
2004 400 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3470-024 | R/B 3470-032 | 1 | $505.95 | |
| 2 | 3470-014 | FILTER | 1 | $64.95 | |
| 3 | 3470-015 | HOLDER | 1 | $23.39 | |
| 4 | 3470-016 | STOPPER,HOLDER | 1 | $20.95 | |
| 5 | 0693-505 | SCREW,M6X16 | 1 | $1.95 | |
| 6 | 3470-026 | TUBE, OUTLET | 1 | $91.95 | |
| 7 | 3470-025 | JOINT | 1 | $20.63 | |
| 8 | 3402-334 | PLUG, BREATHER | 1 | $20.95 | |
| 9 | 3423-313 | CLIP,M14 | 1 | $5.37 | |
| 10 | 3423-727 | CLAMP (CLEANER SIDE) | 1 | $16.49 | |
| 11 | 3423-726 | CLAMP (CARBURETOR SIDE) | 1 | $16.49 | |
| 12 | 3470-017 | TRAP,FLAME | 1 | $23.39 | |
| 13 | 3470-039 | CAP,AIR CLEANER | 1 | $87.95 | |
| 15 | 3470-027 | JOINT, INLET | 1 | $40.95 | |
| 16 | 3470-028 | DUCT, INLET | 1 | $74.95 | |
| 17 | 3423-503 | CLAMP | 1 | $26.95 | |
| 18 | 3007-392 | BOLT | 1 | $3.95 | |
| 19 | 3007-515 | BOLT,WATER INLET CONNECTOR | 1 | $3.16 |
