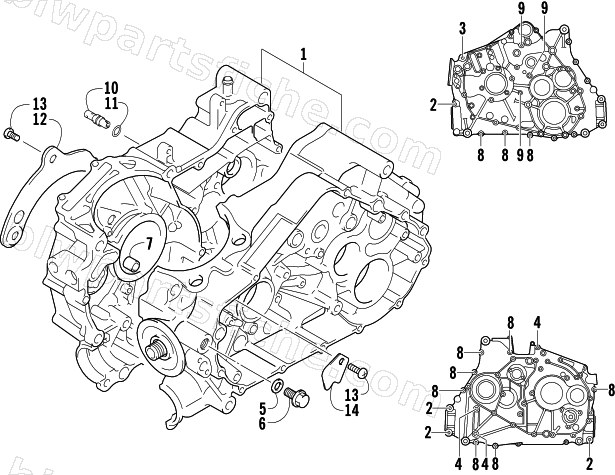

CRANKCASE ASSEMBLY
2004 400 AUTOMATIC TRANSMISSION 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-580 | CRANKCASE SET, (375 AUTO) | 1 | $2,887.95 | |
| 2 | 3004-880 | BOLT, 8X50 | 1 | $3.85 | |
| 3 | 3005-332 | BOLT,8MM | 1 | $4.95 | |
| 4 | 3005-410 | BOLT, 8X85 | 1 | $5.65 | |
| 5 | 3402-012 | GASKET, OIL PLUG,M13.8X18.8X0.4 | 1 | $10.97 | |
| 6 | 3402-214 | PLUG,14MM | 1 | $9.59 | |
| 7 | 3423-088 | PIN, CYLINDER HEAD KNOCK(ALIGMENT) | 1 | $4.54 | |
| 8 | 3423-878 | BOLT,CRANKCASE-M6X45 | 1 | $3.30 | |
| 9 | 3423-097 | BOLT, CLUTCH COVER-M6X70 | 1 | $4.54 | |
| 10 | 3402-691 | JET,OIL GALLERY | 1 | $41.95 | |
| 11 | 3423-051 | O RING | 1 | $2.75 | |
| 12 | 3402-581 | PLATE, OIL GUIDE | 1 | $16.95 | |
| 13 | 3007-574 | SCREW,6X12 | 1 | $2.47 | |
| 14 | 3402-582 | PLATE, OIL GUIDE, L | 1 | $8.21 |
