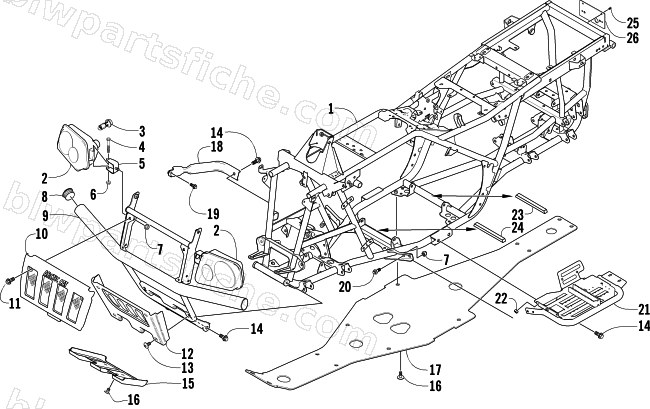

2004 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 TBX — FRAME AND RELATED PARTS
2004 400 AUTOMATIC TRANSMISSION 4X4 TBX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1506-186 | FRAME, MAIN-BLACK (TBX & TRV) | 1 | $1,599.79 | |
| 2 | 0409-032 | HEADLIGHT,RH-ASSY | 1 | $135.95 | |
| 2 | 0409-031 | HEADLIGHT,LH-ASSY | 1 | $135.95 | |
| 3 | 0409-045 | BULB, HEADLIGHT (880) | 1 | $34.95 | |
| 4 | 8410-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 RIE BLK | 1 | $1.50 | |
| 5 | 0406-945 | BRKT, MTG,-HEADLIGHT | 1 | $29.95 | |
| 6 | 0423-375 | NUT,FLANGE NYLOCK-M8 | 1 | $1.23 | |
| 7 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 8 | 0406-130 | CAP,BUMPER(RDR17-1420) | 1 | $5.51 | |
| 9 | 0506-544 | BUMPER,FR-BLACK (LG CH) | 1 | $324.95 | |
| 11 | 0423-361 | SCREW,MACH-TSTRH M6-1.0 X 12 CL8.8 BLK | 1 | $0.95 | |
| 12 | 1406-420 | GRILLE, LOWER | 1 | $49.95 | |
| 13 | 0423-362 | SCREW, MACH-TSTH M8-1.25 X 30 EM- BLK | 1 | $8.21 | |
| 14 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 15 | 0406-834 | PLATE, SKID -FWD | 1 | $21.95 | |
| 16 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 17 | 1406-176 | PANEL,BELLY | 1 | $180.95 | |
| 18 | 1506-596 | CHANNEL,BUMPER MOUNTING-BLACK | 1 | $30.95 | |
| 19 | 8408-812 | SCREW,CAP-HFH M8X1.25X12 CL8.8 Z&Y | 1 | $1.78 | |
| 20 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 21 | 0506-659 | FOOTREST, RH-BLACK (TBX) | 1 | $146.95 | |
| 21 | 0506-658 | FOOTREST, LH-BLACK (500 TBX) | 1 | $151.95 | |
| 22 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 23 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 | |
| 24 | 1506-067 | FOAM, FRAME | 1 | $3.16 | |
| 25 | 0623-361 | SCREW,SELF TAP-HWH #10-24X1/2 TYP F Z&Y | 1 | $0.40 | |
| 26 | 1406-139 | PLATE,MTG-TAIL LIGHT | 1 | $163.95 |
