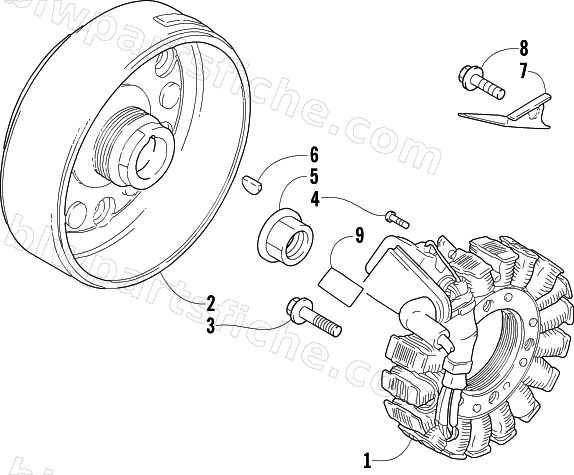

MAGNETO ASSEMBLY
2004 300 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3430-069 | STATOR ASSY,MAGNETO | 1 | $679.95 | |
| 2 | 3430-022 | ROTOR | 1 | $589.95 | |
| 3 | 3007-369 | BOLT,CYLINDER HEAD COVER NO. 1 | 1 | $3.16 | |
| 4 | 3423-883 | SCREW,M4X10 | 1 | $1.95 | |
| 5 | 3423-086 | NUT, MAGNETO ROTOR | 1 | $13.73 | |
| 6 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 7 | 3430-023 | PLATE,MAGNETO | 1 | $12.35 | |
| 8 | 3423-885 | BOLT,RECOIL STARTER-6X12 | 1 | $2.61 | |
| 9 | 3430-036 | SHEET, HEAT PROTECTION | 1 | $13.95 |
