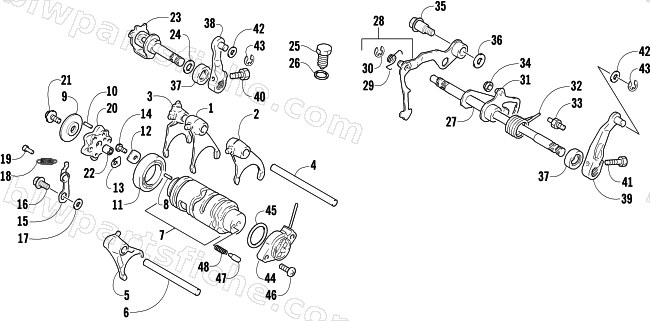

GEAR SHIFTING ASSEMBLY
2004 300 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3446-155 | FORK,GEAR SHIFT,NO.1 | 1 | $122.95 | |
| 2 | 3446-156 | FORK,GEAR SHIFT NO.2 | 1 | $126.95 | |
| 3 | 3446-159 | FORK,GEAR SHIFT REVERSE | 1 | $126.95 | |
| 4 | 3446-167 | SHAFT,GEAR SHIFT FORK | 1 | $39.95 | |
| 5 | 3446-157 | FORK,GEAR SHIFT NO.3 | 1 | $122.95 | |
| 6 | 3446-051 | SHAFT, GEAR SHIFT FORK | 1 | $47.95 | |
| 7 | 3446-160 | CAM,GEAR SHIFT | 1 | $275.95 | |
| 8 | 3423-114 | MM (DOWEL) | 1 | $2.06 | |
| 9 | 3446-162 | RETAINER, SHIFT CAM DRIVE PIN | 1 | $10.97 | |
| 10 | 3423-045 | PIN ,M4X13.8 | 1 | $3.30 | |
| 11 | 3402-051 | BEARING,M25 | 1 | $62.95 | |
| 12 | 3446-163 | RETAINER,CAM BEAR NO.1 | 1 | $12.35 | |
| 13 | 3446-031 | RETAINER, BEARING | 1 | $5.78 | |
| 14 | 3423-370 | SCREW,6MM | 1 | $2.61 | |
| 15 | 3446-165 | STOPPER COMP,GEAR SHIFT CAM | 1 | $29.95 | |
| 16 | 3423-535 | BOLT | 1 | $3.02 | |
| 17 | 3423-141 | WASHER, GEAR SHIFT CAM STOPPER-M6X14 | 1 | $3.95 | |
| 18 | 3402-240 | SPRING,PULL,M6 | 1 | $9.59 | |
| 19 | 3423-268 | PIN,4MM | 1 | $3.30 | |
| 20 | 3446-166 | PLATE, CAM STOPPER | 1 | $42.95 | |
| 21 | 3007-484 | BOLT (6X25) | 1 | $2.95 | |
| 22 | 3005-206 | PIN (H:10),DOWEL | 1 | $3.30 | |
| 23 | 3446-161 | CAM COMP,REVERSE SHIFT | 1 | $112.95 | |
| 24 | 3423-322 | WASHER,M12X18 | 1 | $1.78 | |
| 25 | 3446-164 | STOPPER,REVERSE | 1 | $33.95 | |
| 26 | 3402-012 | GASKET, OIL PLUG,M13.8X18.8X0.4 | 1 | $10.97 | |
| 27 | 3446-169 | SHAFT COMP,GEAR SHIFT | 1 | $187.95 | |
| 28 | 3446-170 | ARM,GEAR SHIFT NO.2 | 1 | $90.95 | |
| 29 | 3402-312 | SPRING,TORSION,M13 | 1 | $4.95 | |
| 30 | 3423-368 | E RING,FASTENER | 1 | $3.71 | |
| 31 | 3446-171 | ARM,GEAR SHIFT LINK | 1 | $51.95 | |
| 32 | 3402-094 | SPRING,TORSION,M26 | 1 | $12.35 | |
| 33 | 3446-172 | STOPPER,ARM | 1 | $8.95 | |
| 34 | 3402-132 | SPACER,7MM | 1 | $10.97 | |
| 35 | 3423-233 | BOLT,8MM | 1 | $6.34 | |
| 36 | 3423-324 | WASHER,M8X20 | 1 | $1.95 | |
| 37 | 3402-076 | OIL SEAL,M12X22X9 | 1 | $16.49 | |
| 38 | 3446-055 | ARM COMP, REVERSE GEAR SHIFT | 1 | $118.95 | |
| 39 | 3446-115 | ARM COMP, TRANSMISSION GEAR SHIFT | 1 | $122.95 | |
| 40 | 3423-884 | BOLT,CTUTCH RELEASE ARM-M6X20 | 1 | $2.61 | |
| 41 | 3423-228 | BOLT,ARM 8MMX25 | 1 | $2.33 | |
| 42 | 3423-204 | WASHER | 1 | $1.95 | |
| 43 | 3423-860 | E RING | 1 | $3.30 | |
| 44 | 3430-050 | SWITCH ASSY, GEAR SHIFT | 1 | $122.95 | |
| 45 | 3423-273 | O RING,D:2.4,ID:26.2 | 1 | $6.47 | |
| 46 | 3423-858 | SCREW | 1 | $1.78 | |
| 47 | 3423-044 | PIN,CAM GEAR,5MM | 1 | $5.37 | |
| 48 | 3402-087 | SPRING,COMPRESSION,M4 | 1 | $3.30 |
