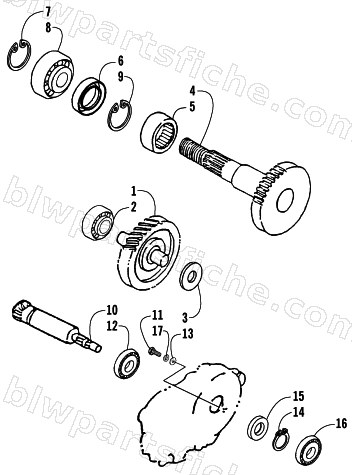

2003 Arctic Cat 90 Y-12 YOUTH () — TRANSMISSION ASSEMBLY
2003 90 Y-12 YOUTH ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-120 | MAIN AXLE COMP | 1 | $125.95 | |
| 2 | 3301-414 | RADIAL BALL BEARING | 1 | $21.95 | |
| 3 | 3301-346 | PLAIN WASHER | 1 | $1.95 | |
| 4 | 3301-122 | DRIVE AXLE | 1 | $151.95 | |
| 5 | 3301-422 | NEEDLE BEARING | 1 | $76.95 | |
| 6 | 3301-440 | OIL SEAL | 1 | $4.95 | |
| 7 | 3301-383 | INTERNAL CIR CLIP | 1 | $22.95 | |
| 8 | 3301-412 | RADIAL BALL BEARING | 1 | $35.95 | |
| 9 | 3301-382 | INTERNAL CIR CLIP | 1 | $3.95 | |
| 10 | 3301-119 | PRIMARY DRIVE GEAR | 1 | $104.95 | |
| 11 | 3301-305 | HEX BOLT | 1 | $1.50 | |
| 12 | 3301-410 | RADIAL BALL BEARING | 1 | $25.95 | |
| 13 | 3301-341 | PLAIN WASHER | 1 | $1.50 | |
| 14 | 3301-378 | EXTERNAL CIRCLIP | 1 | $1.95 | |
| 15 | 3301-435 | OIL SEAL | 1 | $10.95 | |
| 16 | 3301-416 | RADIAL BALL BEARING | 1 | $52.95 | |
| 17 | 3301-360 | SPRING WASHER | 1 | $1.95 |
