2003 Arctic Cat 90 Y-12 YOUTH () — DECALS

2003 90 Y-12 YOUTH ()

Scroll / pinch to zoom · drag or arrow keys to pan · double-click resets

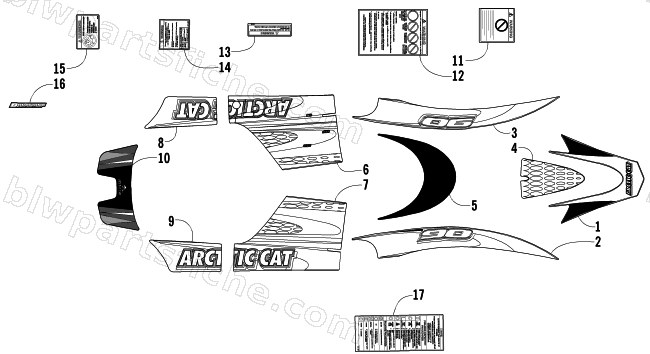

DECALS diagram

Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.

Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

# Part No. Description Qty Price
1 0411-442 DECAL,GRAPHIC-FRONT (RED) 1 $42.95
1 0411-448 DECAL,GRAPHIC-FRONT (GRN) 1 $23.39
2 0411-443 DECAL,GRAPHIC-RH-UPPER (RED) 1 $12.35
2 0411-449 DECAL,GRAPHIC-RH-UPPER (GRN) 1 $12.35
3 0411-444 DECAL, GRAPHIC - UPPER LH 1 $30.95
3 0411-450 DECAL, GRAPHIC - UPPER LH 1 $12.35
4 0411-462 DECAL,GRAPHIC-FRONT INSERT (RED) 1 $12.35
4 0411-463 DECAL,GRAPHIC-FRONT INSERT (GRN) 1 $12.35
5 0411-454 DECAL,GRAPHIC-COWL (BLACK) 1 $22.95
6 0411-446 DECAL,GRAPHIC-LH-LOWER (RED) 1 $79.95
6 0411-452 DECAL,GRAPHIC-LH-LOWER (GRN) 1 $42.95
7 0411-445 DECAL,GRAPHIC-RH-LOWER (RED) 1 $79.95
7 0411-451 DECAL,GRAPHIC-RH-LOWER (GRN) 1 $42.95
8 0411-459 DECAL,GRAPHIC-LH-LOWER-REAR (RED 1 $79.95
8 0411-461 DECAL,GRAPHIC-LH-LOWER-REAR (GREEN) 1 $82.95
9 0411-458 DECAL,GRAPHIC-RH-LOWER-REAR (RED) 1 $79.95
9 0411-460 DECAL,GRAPHIC-RH-LOWER-REAR (GREEN) 1 $17.87
10 0411-447 DECAL,GRAPHIC-REAR (RED) 1 $10.97
10 0411-453 DECAL,GRAPHIC-REAR (GRN) 1 $66.95
11 0411-400 DECAL, WARNING-AGE (12) 1 $148.95
12 0411-218 DECAL,WARNING-GENERAL 1 $17.87
13 0411-426 DECAL,WARNING-CLUTCH COVER-ATV 1 $3.30
14 0411-455 DECAL,WARNING-TIRE/LOAD (MINI) 1 $10.97
15 0411-435 DECAL, WARNING-PASSENGER 1 $66.95
16 0411-481 DECAL, DURAMATIC 1 $13.73
17 0411-457 DECAL,WARNING-RVS/PRE RIDE 1 $163.95
