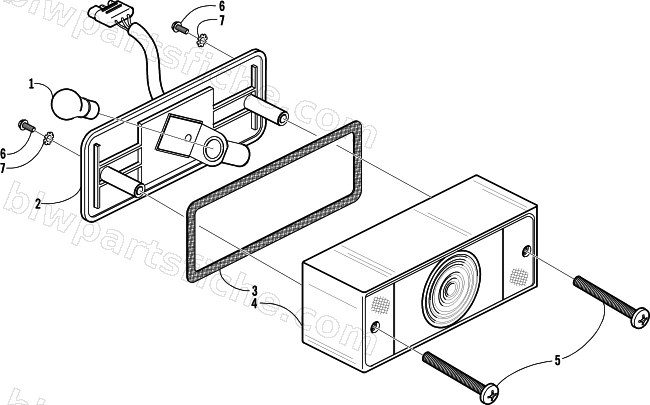

TAILLIGHT ASSEMBLY
2003 500 TRV AUTOMATIC TRANSMISSION
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0409-002 | TAIL LIGHT-ASSY | 1 | $114.95 | |
| 1 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 2 | 0409-058 | BASE,TAILLIGHT-W/SOCKET | 1 | $64.95 | |
| 3 | 0409-012 | GASKET,TAIL LIGHT | 1 | $6.47 | |
| 4 | 0409-007 | LENS,TAILLAMP | 1 | $30.95 | |
| 5 | 0409-010 | SCREW,TAILLIGHT | 1 | $1.95 | |
| 6 | 0423-421 | SCREW,SELF TAP-HWH #10 X 1.375 TYPE AB | 1 | $0.81 | |
| 7 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 |
