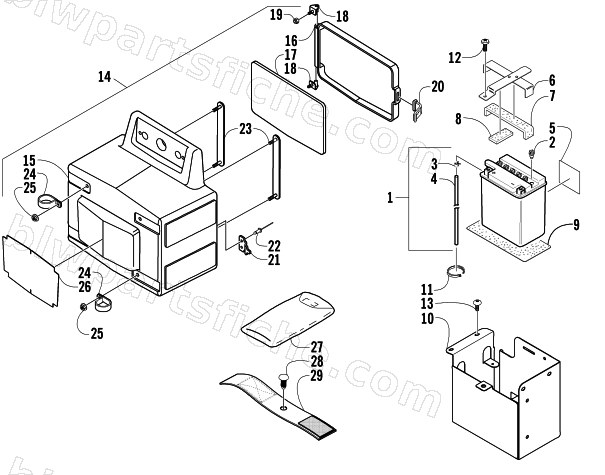

2003 Arctic Cat 500 TRV AUTOMATIC TRANSMISSION — STORAGE BOX AND BATTERY ASSEMBLY
2003 500 TRV AUTOMATIC TRANSMISSION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-045 | BATTERY PKG (0645-165) | 1 | $124.95 | |
| 2 | 0645-045 | BATTERY CAP | 1 | $1.92 | |
| 3 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 | |
| 4 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 5 | 0645-151 | LABEL, WARNING-BATTERY | 1 | $10.97 | |
| 6 | 0506-877 | STRAP,BATTERY-W/PAD | 1 | $4.95 | |
| 7 | 1406-266 | PAD,FOAM-PSA BACK (1X4.25) | 1 | $3.95 | |
| 8 | 1406-265 | PAD,FOAM-PSA BACK (1X2.25) | 1 | $3.16 | |
| 9 | 1406-219 | PAD,BATTERY-LOWER | 1 | $13.73 | |
| 10 | 0506-872 | BOX,BATTERY-BLACK | 1 | $91.95 | |
| 11 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 12 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 13 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 14 | 0506-943 | STORAGE BOX, ASSEMBLY (TRV) | 1 | $232.95 | |
| 15 | 1406-209 | BOX, STORAGE | 1 | $162.95 | |
| 16 | 1406-218 | LID,STORAGE BOX | 1 | $66.95 | |
| 17 | 1406-211 | SEAL,LID-STORAGE BOX | 1 | $20.63 | |
| 18 | 0506-674 | HINGE, WELDT | 1 | $47.95 | |
| 19 | 8424-502 | NUT,HEX-FLG M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 20 | 1406-134 | STRAP,HATCH COVER | 1 | $4.40 | |
| 21 | 1406-210 | BRACKET,LATCH | 1 | $23.39 | |
| 22 | 0623-685 | RIVET,ADS54ABSLF | 1 | $3.95 | |
| 23 | 0506-944 | BRACKET,TOOLBOX MTG-WELDMENT | 1 | $20.95 | |
| 24 | 0423-403 | CLAMP,TUBE-1.125"(ARDEN COV 1909 ZI) | 1 | $12.35 | |
| 25 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 26 | 1406-260 | SHIELD, HEAT - TOOL BOX | 1 | $33.95 | |
| 27 | 0444-122 | KIT, TOOL | 1 | $24.77 | |
| 28 | 0606-586 | PLUG,HOLE-.250 PANEL HOLE-FLT HD STYLE | 1 | $3.71 | |
| 29 | 0406-379 | STRAP,TOOL | 1 | $10.95 |
