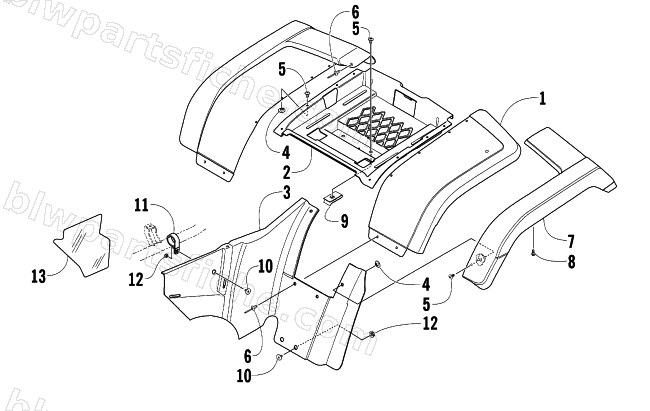

2003 Arctic Cat 500 TRV AUTOMATIC TRANSMISSION — REAR BODY PANEL ASSEMBLY
2003 500 TRV AUTOMATIC TRANSMISSION
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0506-909 | PANEL, FENDER REAR RH GREEN | 1 | $181.95 | |
| 1 | 0506-911 | PANEL, FENDER REAR LH GREEN | 1 | $486.95 | |
| 2 | 0506-935 | TRAY,UNDERSEAT STORAGE-ROUTED | 1 | $307.95 | |
| 3 | 0506-923 | FENDER EXTENSION-RH | 1 | $324.95 | |
| 3 | 0506-924 | FENDER EXTENSION-LH | 1 | $324.95 | |
| 4 | 0423-077 | NUT,T-W/TEETH (6MM) | 1 | $3.44 | |
| 5 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 6 | 0423-046 | RIVET, PLASTIC - DH - .246X.157-.394 BLK | 1 | $1.09 | |
| 7 | 0506-552 | FLARE, REAR RH | 1 | $79.95 | |
| 7 | 0506-553 | FLARE, REAR LH | 1 | $79.95 | |
| 8 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 9 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 10 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 11 | 0423-044 | CLAMP,TUBE-1" ARDEN(COV 1709 ZI) | 1 | $2.61 | |
| 12 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 13 | 1406-262 | SHIELD, HEAT - SIDE PANEL | 1 | $54.95 |
