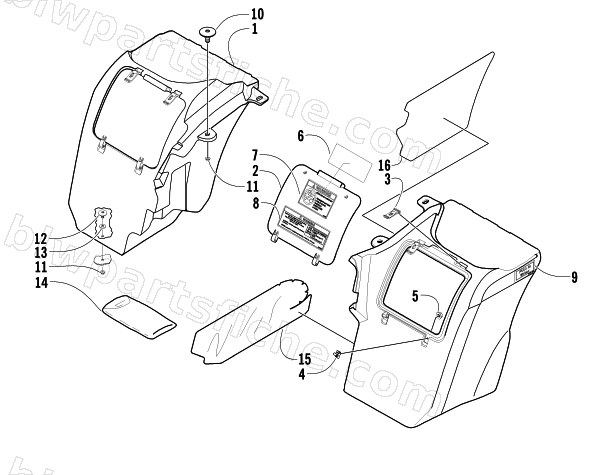

STORAGE BOX ASSEMBLY
2003 500 TBX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0506-863 | BOX,STORAGE-RH-ASSY | 1 | $612.95 | |
| 1 | 0506-862 | BOX,STORAGE-LH-ASSY | 1 | $612.95 | |
| 2 | 1506-020 | HATCH,STORAGE BOX-ASSY | 1 | $69.95 | |
| 3 | 1406-134 | STRAP,HATCH COVER | 1 | $4.40 | |
| 4 | 0506-674 | HINGE, WELDT | 1 | $47.95 | |
| 5 | 8424-502 | NUT,HEX-FLG M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 6 | 0411-487 | DECAL,CAPACITY-SIDE CONTAINER | 1 | $12.35 | |
| 7 | 0411-435 | DECAL, WARNING-PASSENGER | 1 | $66.95 | |
| 8 | 0411-589 | DECAL,WARNING-TIRE PRESSURE | 1 | $10.97 | |
| 9 | 0411-489 | DECAL,"PULL TO TILT BOX" | 1 | $6.47 | |
| 10 | 0423-130 | SCREW,FUEL TANK | 1 | $5.65 | |
| 11 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 12 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 14 | 0444-122 | KIT, TOOL | 1 | $24.77 | |
| 15 | 0412-166 | SHIELD,HEAT | 1 | $108.95 | |
| 16 | 1406-261 | SHIELD, HEAT - SIDE BOX | 1 | $69.95 |
