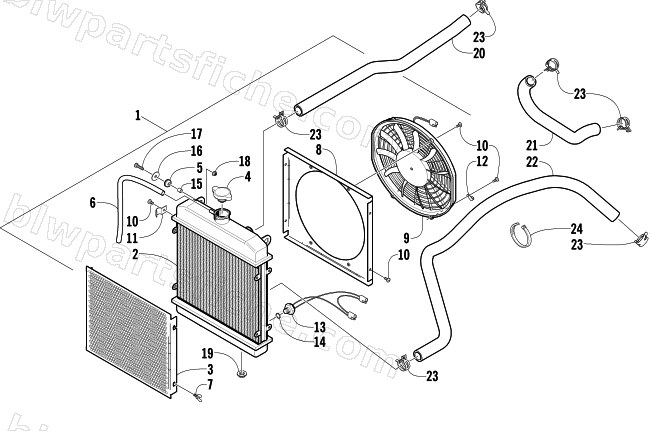

COOLING ASSEMBLY
2003 500 TBX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-038 | RADIATOR - ASSY | 1 | $927.95 | |
| 3 | 0413-007 | SCREEN,RADIATOR | 1 | $85.95 | |
| 4 | 0413-255 | CAP,RADIATOR | 1 | $53.95 | |
| 5 | 0423-030 | GROMMET(LV 11378) | 1 | $4.26 | |
| 6 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 7 | 0413-009 | THUMB SCREW-RAD | 1 | $6.95 | |
| 8 | 0413-046 | SHROUD, FAN | 1 | $72.95 | |
| 9 | 0413-123 | FAN,RADIATOR | 1 | $224.95 | |
| 10 | 8475-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&CLR | 1 | $0.95 | |
| 11 | 0423-351 | CLIP, HOSE | 1 | $4.13 | |
| 12 | 0123-397 | CLAMP CABLE NYLON 5/16 | 1 | $0.75 | |
| 13 | 0413-045 | SWITCH, SENSOR-TEMP | 1 | $66.95 | |
| 14 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 15 | 0423-036 | COLLAR,.375" OD X.26" ID X.375" | 1 | $20.63 | |
| 16 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 17 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 18 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 19 | 0423-028 | BUSHING,STEM(LV28098) | 1 | $4.95 | |
| 20 | 0410-002 | HOSE,COOLANT-UPR | 1 | $49.95 | |
| 21 | 0410-022 | HOSE,COOLANT-CROSSOVER | 1 | $58.95 | |
| 22 | 0410-041 | HOSE,COOLANT-LWR | 1 | $86.95 | |
| 23 | 0423-070 | CLAMP,HOSE-SPRING(32mm) (USE 1623-321) | 1 | $4.95 | |
| 24 | 0623-751 | CABLE TIE,REUSABLE-('98 440 PRO) | 1 | $0.95 |
