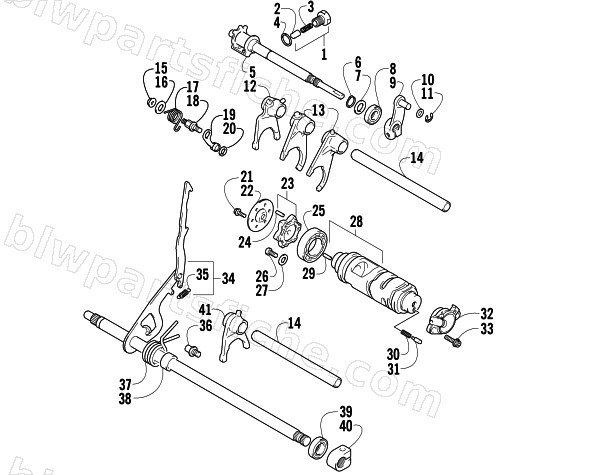

GEAR SHIFTING ASSEMBLY
2003 500 FIS MANUAL TRANSMISSION ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3446-164 | STOPPER,REVERSE | 1 | $33.95 | |
| 2 | 3446-117 | STOPPER, REVERSE SHIFT CAM | 1 | $20.95 | |
| 3 | 3402-088 | SPRING,COMPRESSION,M5 | 1 | $9.59 | |
| 4 | 3402-012 | GASKET, OIL PLUG,M13.8X18.8X0.4 | 1 | $10.97 | |
| 5 | 3446-349 | CAM, REVERSE SHIFT | 1 | $104.95 | |
| 6 | 3423-876 | CIRCLIP,REV SHIFT CAM FASTENER | 1 | $3.44 | |
| 7 | 3423-357 | WASHER,REVERSE SHIFT CAM-M12X20 | 1 | $1.78 | |
| 8 | 3402-076 | OIL SEAL,M12X22X9 | 1 | $16.49 | |
| 9 | 3402-434 | ARM, COMPRESSION,-SELECT | 1 | $79.95 | |
| 10 | 3423-204 | WASHER | 1 | $1.95 | |
| 11 | 3423-860 | E RING | 1 | $3.30 | |
| 12 | 3446-040 | FORK, GEAR SHIFT, REVERSE | 1 | $140.95 | |
| 13 | 3446-347 | FORK, GEAR SHIFT, NO.2 | 1 | $140.95 | |
| 14 | 3446-052 | SHAFT, GEAR SHIFT FORK | 1 | $56.95 | |
| 15 | 3007-373 | NUT | 1 | $3.16 | |
| 16 | 3423-142 | WASHER, CAM STOPPER ARM SUPPORT-M6X18 | 1 | $2.06 | |
| 17 | 3423-551 | SPRING, GEAR SHIFT CAM | 1 | $12.35 | |
| 18 | 3446-048 | SUPPORT, CAM STOPPER ARM | 1 | $32.95 | |
| 19 | 3446-043 | STOPPER, GEAR SHIFT CAM | 1 | $30.95 | |
| 20 | 3423-141 | WASHER, GEAR SHIFT CAM STOPPER-M6X14 | 1 | $3.95 | |
| 21 | 3423-884 | BOLT,CTUTCH RELEASE ARM-M6X20 | 1 | $2.61 | |
| 22 | 3446-309 | GUIDE, GEAR SHIFT | 1 | $20.63 | |
| 23 | 3446-049 | PLATE, GEAR SHIFT CAM | 1 | $67.95 | |
| 24 | 3423-045 | PIN ,M4X13.8 | 1 | $3.30 | |
| 25 | 3402-051 | BEARING,M25 | 1 | $62.95 | |
| 26 | 3423-370 | SCREW,6MM | 1 | $2.61 | |
| 27 | 3423-135 | RETAINER, CNTR SHAFT BRG-M6X16 | 1 | $5.92 | |
| 28 | 3446-348 | CAM, GEAR SHIFT | 1 | $263.95 | |
| 29 | 3423-114 | MM (DOWEL) | 1 | $2.06 | |
| 30 | 3402-087 | SPRING,COMPRESSION,M4 | 1 | $3.30 | |
| 31 | 3423-044 | PIN,CAM GEAR,5MM | 1 | $5.37 | |
| 32 | 3402-816 | BASE ASSY, GEAR SHIFT TERM | 1 | $216.95 | |
| 33 | 3423-418 | BOLT, BASE ASSY | 1 | $3.30 | |
| 34 | 3446-410 | SHAFT,GEAR SHIFT | 1 | $181.95 | |
| 35 | 3402-093 | SPRING,PULL,M6 | 1 | $12.35 | |
| 36 | 3446-056 | STOPPER, GEAR SHIFT ARM | 1 | $12.35 | |
| 37 | 3402-094 | SPRING,TORSION,M26 | 1 | $12.35 | |
| 38 | 3446-054 | SPACER, GEAR SHIFT SHAFT | 1 | $20.63 | |
| 39 | 3402-068 | OIL SEAL,M13X22X6 | 1 | $17.87 | |
| 40 | 3402-815 | BOSS, GEAR SHIFT LEVER | 1 | $30.95 | |
| 41 | 3446-039 | FORK, GEAR SHIFT, NO.3 | 1 | $140.95 |
