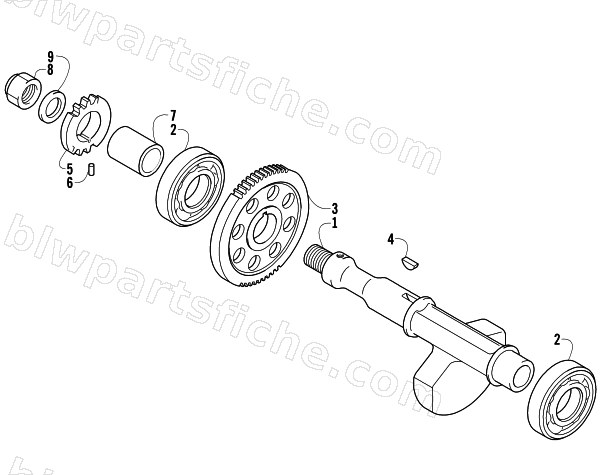

2003 Arctic Cat 500 FIS MANUAL TRANSMISSION ( - MRP) — CRANK BALANCER ASSEMBLY
2003 500 FIS MANUAL TRANSMISSION ( - MRP)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-350 | BALANCER,CRANKSHAFT | 1 | $199.95 | |
| 2 | 3402-050 | BEARING, M22X56X16 | 1 | $139.95 | |
| 3 | 3402-814 | GEAR, DRIVEN | 1 | $252.95 | |
| 4 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 5 | 3402-390 | GEAR,OIL PUMP DRIVE | 1 | $79.95 | |
| 6 | 3423-114 | MM (DOWEL) | 1 | $2.06 | |
| 7 | 3402-151 | SPACER, OIL PUMP DRIVE GR | 1 | $32.95 | |
| 8 | 3423-025 | NUT,16MM | 1 | $4.95 | |
| 9 | 3423-029 | WASHER, 16X29X4 | 1 | $6.75 |
