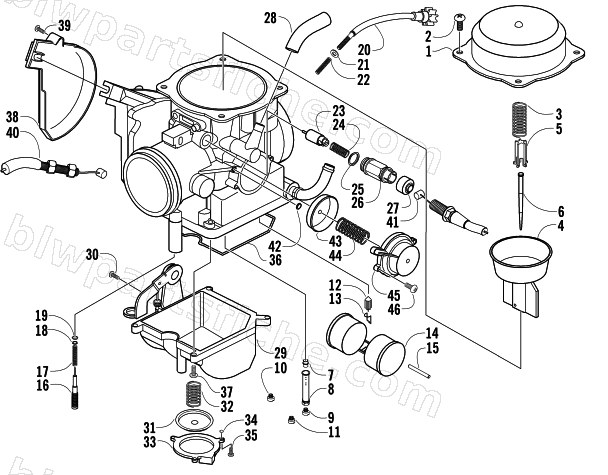

CARBURETOR

2003 500 FIS AUTOMATIC TRANSMISSION ( - MRP)

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
0	0470-458	CARB,KEIHIN-CVK 36	1	$905.95
1	5507-001	COVER, TOP	1	$66.95
2	5507-002	SCREW, TOP COVER	1	$0.40
3	5507-066	SPRING	1	$6.47
4	5507-099	PISTON,VACUUM	1	$140.95
5	5507-054	SPRING, SEAT	1	$4.40
6	5507-100	JET NEEDLE	1	$26.95
7	5507-007	NEEDLE JET	1	$26.95
8	5507-047	HOLDER, NEEDLE- JET	1	$26.95
9	5507-009	MAIN JET 150	1	$16.49
9	5507-041	MAIN JET 148	1	$16.49
9	5507-043	MAIN JET 142	1	$16.49
9	5507-044	MAIN JET 140	1	$20.63
10	5507-070	JET, SLOW #40	1	$20.63
11	5507-092	JET,STARTER 90	1	$20.63
12	5507-107	FLOAT VALVE SET	1	$33.95
14	5507-039	FLOAT SET	1	$37.95
16	5507-108	PILOT SCREW SET	1	$26.95
20	5507-027	STOP SCREW COMP.	1	$122.95
21	5507-028	WASHER	1	$0.40
22	5507-029	SPRING	1	$5.92
23	5507-022	STARTER VALVE	1	$37.95
24	5507-023	SPRING	1	$3.44
25	5507-024	O-RING	1	$3.02
26	5507-025	CAP	1	$6.47
27	5507-026	RUBBER CAP	1	$3.44
28	5507-030	TUBE, VINYL	1	$21.95
30	5507-050	SCREW, DRAIN	1	$3.02
31	5507-197	DIAPHRAGM	1	$42.95
32	5507-032	SPRING	1	$13.73
34	5507-034	U RING	1	$3.02
35	5507-035	SCREW	1	$1.23
36	5507-067	O-RING, FLOAT CHAMBER	1	$16.49
37	5507-017	SCREW	1	$7.30
38	5507-036	COVER	1	$4.95
39	5507-037	SCREW(TOP COVER)	1	$0.95
40	0487-049	CABLE,THROTTLE	1	$69.95
41	0487-016	CABLE,CHOKE-500 (KEIHIN)	1	$74.95
42	5507-102	U-RING	1	$4.40
43	5507-103	DIAPHRAGM ASS'Y	1	$64.95
44	5507-104	COIL SPRING	1	$4.54
45	5507-105	COVER	1	$50.95
46	5507-106	SCREW	1	$2.06
