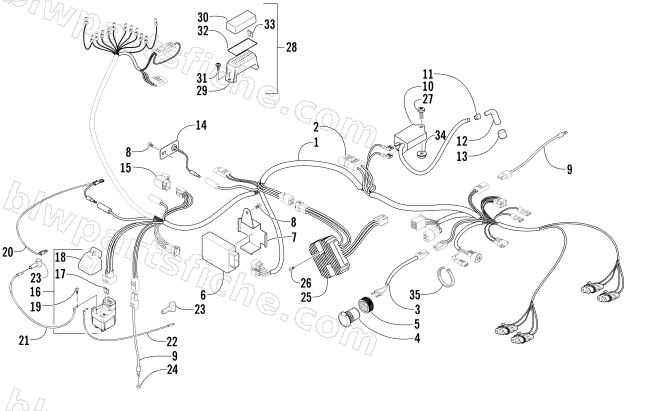

2003 Arctic Cat 400 FIS AUTOMATIC TRANSMISSION () — WIRING HARNESS ASSEMBLY
2003 400 FIS AUTOMATIC TRANSMISSION ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0486-093 | HARNESS,MAIN (375 A) | 1 | $579.95 | |
| 2 | 0486-029 | DIODE ASSY | 1 | $42.95 | |
| 3 | 0486-004 | HARNESS,12V RECEPTICAL | 1 | $10.97 | |
| 4 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 5 | 0445-034 | NUT, RETAINER-12V ACC PLUG | 1 | $0.40 | |
| 6 | 3402-683 | CDI UNIT | 1 | $856.95 | |
| 7 | 0506-985 | BRACKET, CDI - BLACK | 1 | $15.11 | |
| 8 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 9 | 0409-009 | SWITCH,BRAKE-ASSY | 1 | $82.95 | |
| 10 | 3530-027 | COIL, IGN | 1 | $187.95 | |
| 11 | 3430-009 | SEAL, HIGH TENSION CORD | 1 | $10.97 | |
| 12 | 3430-007 | CAP ASSY, SPARK PLUG | 1 | $23.39 | |
| 13 | 3430-008 | SEAL SPARK PLUG | 1 | $12.35 | |
| 14 | 0530-125 | KIT,FAN DIODE | 1 | $17.87 | |
| 15 | 3530-026 | RELAY ASSY, NEUTRAL START | 1 | $90.95 | |
| 16 | 3530-001 | RELAY ASSY, STARTING MOTOR | 1 | $169.95 | |
| 17 | 0630-098 | FUSE,30 AMP ATO/ATC | 1 | $8.21 | |
| 18 | 3530-010 | COVER, RELAY SWITCH | 1 | $12.35 | |
| 20 | 0445-002 | CABLE,BATT/GRND(BLK) | 1 | $34.95 | |
| 21 | 0445-032 | CABLE,RELAY-STR MTR (RED) | 1 | $32.95 | |
| 22 | 0445-003 | CABLE,BATTERY-SOLENOID (16" RED #8) | 1 | $29.95 | |
| 23 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 24 | 0402-991 | RETAINER,BRAKE SWITCH | 1 | $6.75 | |
| 25 | 3402-682 | RECTIFIER-ASSY | 1 | $454.95 | |
| 26 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 27 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 28 | 0530-001 | FUSE BOX-ASSY | 1 | $33.95 | |
| 31 | 0623-361 | SCREW,SELF TAP-HWH #10-24X1/2 TYP F Z&Y | 1 | $0.40 | |
| 32 | 0411-271 | DECAL,FUSE BLOCK | 1 | $3.95 | |
| 33 | 0630-057 | FUSE,10 AMP ATO | 1 | $8.95 | |
| 33 | 0630-058 | FUSE,15 AMP ATO | 1 | $8.21 | |
| 34 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 35 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
