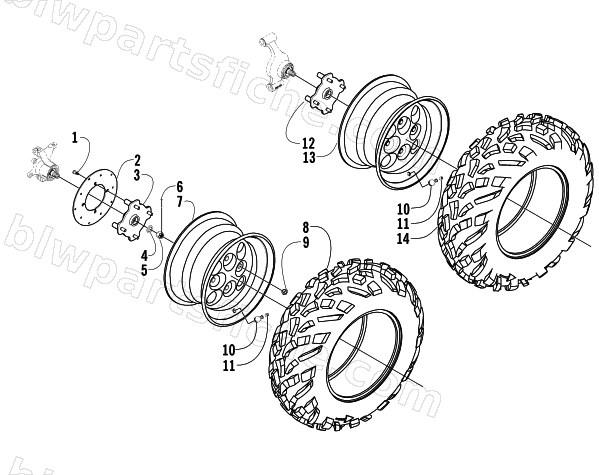

2003 Arctic Cat 400 FIS AUTOMATIC TRANSMISSION () — WHEEL AND TIRE ASSEMBLY
2003 400 FIS AUTOMATIC TRANSMISSION ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 2 | 1436-164 | KIT-DISC,BRAKE | 1 | $58.95 | |
| 3 | 0502-361 | HUB,UNSPLINED-ASSY (W/ DISK MT) | 1 | $180.95 | |
| 3 | 0502-421 | HUB - ASSY | 1 | $180.95 | |
| 4 | 0402-181 | SEAL,HUB | 1 | $1.64 | |
| 5 | 0423-394 | NUT,CASTLE FLANGE-M18X1.5 Z&Y | 1 | $13.73 | |
| 6 | 0423-407 | PIN,COTTER-1/8X1-1/2 | 1 | $0.40 | |
| 7 | 0402-856 | WHEEL ASSY-GRAY 12" | 1 | $114.95 | |
| 8 | 0402-890 | TIRE,25X8-12 - DUNLOP KT123A | 1 | $179.95 | |
| 9 | 0423-408 | NUT,LUG-M10 | 1 | $1.37 | |
| 10 | 0402-064 | VALVE STEM(412-50)(SCHRADER) | 1 | $3.44 | |
| 12 | 0502-423 | HUB - ASSY | 1 | $180.95 | |
| 13 | 0402-858 | WHEEL,REAR-ASSY (GRAY) 12" | 1 | $114.95 | |
| 14 | 0402-926 | TIRE,25X11-12 - DUNLOP KT127B | 1 | $187.95 |
