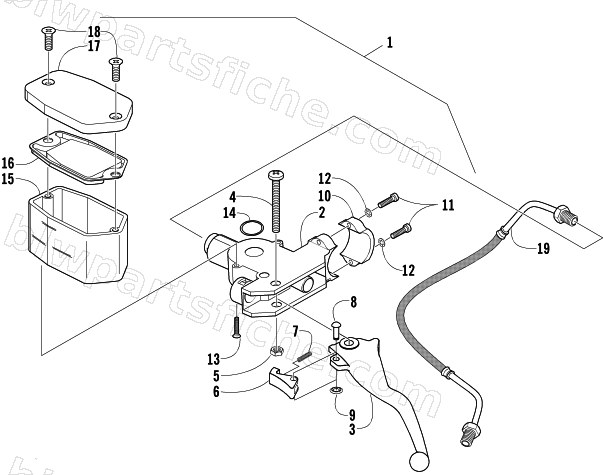

2003 Arctic Cat 400 FIS AUTOMATIC TRANSMISSION () — HYDRAULIC HAND BRAKE ASSEMBLY
2003 400 FIS AUTOMATIC TRANSMISSION ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0502-429 | KIT, REBUILD-MASTER CYLINDER(WILWOOD) | 1 | $45.95 | |
| 1 | 0502-387 | MASTER CYLINDER - ASSEMBLY | 1 | $199.95 | |
| 3 | 0402-818 | LEVER, BRAKE | 1 | $64.95 | |
| 4 | 0623-430 | BOLT, LEVER MOUNTING | 1 | $4.68 | |
| 5 | 0623-056 | NUT,LOCK M6X1 | 1 | $0.40 | |
| 6 | 1402-034 | LOCK, BRAKE LEVER | 1 | $6.75 | |
| 7 | 0402-245 | SPRING,PARKING BRAKE | 1 | $5.95 | |
| 8 | 0402-246 | PIN, PARKING BRAKE | 1 | $0.95 | |
| 9 | 0423-090 | NUT,PRESS ON (PUSHNUT)-1/8 STUD | 1 | $0.40 | |
| 10 | 0602-907 | CLAMP,MNTG-MASTER CYL | 1 | $34.95 | |
| 11 | 0623-613 | SCREW,CAP-TSH-HYDRAULIC BRAKE | 1 | $2.06 | |
| 12 | 8052-212 | WASHER,LOCK-1/4 INTL TOOTH TYP A Z&Y | 1 | $0.26 | |
| 13 | 0623-432 | SCREW,RESERVOIR MOUNTING | 1 | $3.16 | |
| 14 | 0602-587 | O-RING, RESERVOIR-MASTER CYL. | 1 | $12.35 | |
| 15 | 0602-740 | RESERVOIR,HYD BRAKE | 1 | $60.95 | |
| 16 | 0602-741 | GASKET,COVER-MASTER CYL HYD BRAKE | 1 | $27.95 | |
| 17 | 0602-742 | COVER,MASTER CYL HYD BRAKE | 1 | $19.25 | |
| 18 | 0623-506 | SCREW,COVER-MASTER CYLINDER | 1 | $1.78 | |
| 19 | 0402-962 | HOSE,BRAKE-MASTER CYL | 1 | $79.95 |
