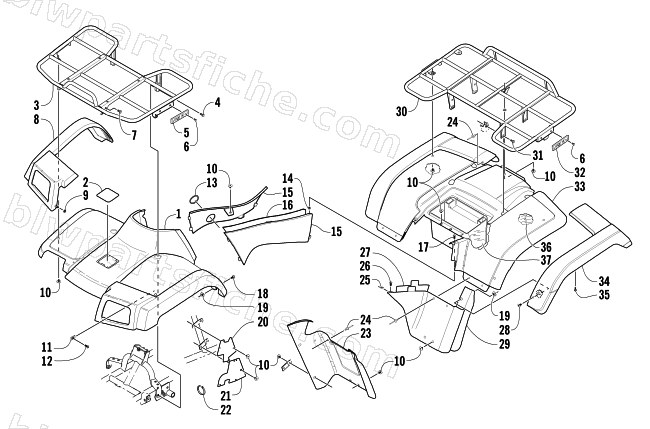

BODY PANEL ASSEMBLY
2003 400 FIS AUTOMATIC TRANSMISSION (4X4 )
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0506-605 | PANEL,FENDER,FR-ROUTED (RD) | 1 | $647.95 | |
| 1 | 0506-604 | PANEL,FENDER,FR-ROUTED (GRN) | 1 | $742.95 | |
| 1 | 0506-616 | PANEL,FENDER,FR-ROUTED (RD) | 1 | $405.95 | |
| 1 | 0506-584 | PANEL,FENDER FR-ROUTED (GRN) | 1 | $628.95 | |
| 1 | 0506-721 | PANEL,FENDER-FR.LIME GREEN | 1 | $647.95 | |
| 2 | 1406-142 | COVER,ACCESS-RED (W/LOGO) | 1 | $20.95 | |
| 2 | 1406-141 | COVER,ACCESS-MARSH GREEN (W/LOGO) | 1 | $21.95 | |
| 2 | 1406-041 | COVER,ACCESS-LIME GREEN (W/LOGO) | 1 | $20.95 | |
| 3 | 0506-718 | RACK-FR-BLACK | 1 | $293.95 | |
| 3 | 0506-547 | RACK, FR-BLACK | 1 | $679.95 | |
| 4 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 5 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 6 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 7 | 0423-360 | SCREW, CAP HFH M8-1.25 X 12 EM- BLK | 1 | $10.95 | |
| 8 | 0506-550 | FLARE, FRONT RH | 1 | $79.95 | |
| 8 | 0506-551 | FLARE, FRONT LH | 1 | $79.95 | |
| 9 | 0423-357 | NUT, STAMPED-1/4" (SD 25001 SOH) | 1 | $0.95 | |
| 10 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 11 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 12 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 13 | 0470-404 | GROMMET,GAS VALVE KNOB | 1 | $2.95 | |
| 14 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 15 | 0506-243 | PANEL,SIDE-LH ROUTED - RED | 1 | $36.95 | |
| 15 | 0506-549 | PANEL, SIDE RH-ROUTED (GRN) | 1 | $317.95 | |
| 15 | 0506-673 | PANEL, SIDE-LH-ROUTED GRN | 1 | $126.95 | |
| 15 | 0506-722 | PANEL,SIDE-RH-ROUTED-CAT GREEN | 1 | $79.95 | |
| 15 | 0506-723 | PANEL,SIDE-LH-ROUTED-CAT GREEN | 1 | $32.95 | |
| 16 | 0412-142 | SHIELD,HEAT (PSA) | 1 | $32.95 | |
| 17 | 0423-068 | SCREW,MACH-#10-32X3/4(BLK) | 1 | $0.35 | |
| 18 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 18 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 19 | 0423-438 | NUT,T W/TEETH - M6 | 1 | $12.35 | |
| 20 | 1406-063 | PANEL,FENDER-RH-INNER | 1 | $54.95 | |
| 20 | 1406-064 | PANEL,FENDER-LH-INNER | 1 | $13.95 | |
| 21 | 1406-006 | PANEL, FENDER- INNER | 1 | $13.95 | |
| 22 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 23 | 0406-140 | FLARE,FR RH MOLDED-ECONO-BLACK | 1 | $74.95 | |
| 23 | 0506-628 | PANEL, KICK-FR-LH-ROUTED | 1 | $64.95 | |
| 23 | 0406-941 | PANEL, KICK-FR-RH-BLACK | 1 | $79.95 | |
| 23 | 0506-626 | PANEL, KICK-FR-LH-ROUTED | 1 | $64.95 | |
| 24 | 0423-046 | RIVET, PLASTIC - DH - .246X.157-.394 BLK | 1 | $1.09 | |
| 25 | 0423-060 | CLIP, TINERMAN -C07508-8A-4 | 1 | $1.95 | |
| 26 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 27 | 0412-140 | SHIELD,HEAT (PSA) | 1 | $26.95 | |
| 28 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 29 | 1506-042 | FENDER,EXTENSION-RH-ROUTED | 1 | $90.95 | |
| 29 | 0406-085 | FENDER EXTENSION-LH-MOLDED-BLACK | 1 | $90.95 | |
| 30 | 0506-821 | RACK,REAR-W/FENCE-BLACK | 1 | $1,130.95 | |
| 31 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 32 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 33 | 0506-618 | RR FENDER-RED-ROUTED | 1 | $427.95 | |
| 33 | 0506-634 | PANEL, FENDER-RR-ROUTED-GRN | 1 | $474.95 | |
| 33 | 1506-520 | PANEL,RR FENDER-RED-ROUTED | 1 | $474.95 | |
| 33 | 1506-519 | PANEL,RR FENDER-GREEN-ROUTED | 1 | $474.95 | |
| 33 | 0506-724 | PANEL,RR FENDER-ROUTED LIME GREEN | 1 | $474.95 | |
| 34 | 0506-552 | FLARE, REAR RH | 1 | $79.95 | |
| 34 | 0506-553 | FLARE, REAR LH | 1 | $79.95 | |
| 35 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 36 | 0412-124 | SHIELD, HEAT(PSA) | 1 | $33.95 | |
| 37 | 0412-147 | SHIELD,HEAT (PSA) | 1 | $33.95 |
