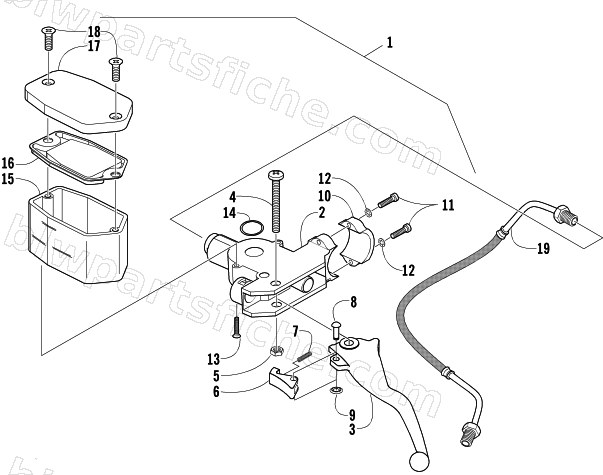

2003 Arctic Cat 400 FIS AUTOMATIC TRANSMISSION (4X4 -MRP) — HYDRAULIC HAND BRAKE ASSEMBLY
2003 400 FIS AUTOMATIC TRANSMISSION (4X4 -MRP)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0502-429 | KIT, REBUILD-MASTER CYLINDER(WILWOOD) | 1 | $45.95 | |
| 1 | 0502-387 | MASTER CYLINDER - ASSEMBLY | 1 | $199.95 | |
| 3 | 0402-818 | LEVER, BRAKE | 1 | $64.95 | |
| 4 | 0623-430 | BOLT, LEVER MOUNTING | 1 | $4.68 | |
| 5 | 0623-056 | NUT,LOCK M6X1 | 1 | $0.40 | |
| 6 | 1402-034 | LOCK, BRAKE LEVER | 1 | $6.75 | |
| 7 | 0402-245 | SPRING,PARKING BRAKE | 1 | $5.95 | |
| 8 | 0402-246 | PIN, PARKING BRAKE | 1 | $0.95 | |
| 9 | 0423-090 | NUT,PRESS ON (PUSHNUT)-1/8 STUD | 1 | $0.40 | |
| 10 | 0602-907 | CLAMP,MNTG-MASTER CYL | 1 | $34.95 | |
| 11 | 0623-613 | SCREW,CAP-TSH-HYDRAULIC BRAKE | 1 | $2.06 | |
| 12 | 8052-212 | WASHER,LOCK-1/4 INTL TOOTH TYP A Z&Y | 1 | $0.26 | |
| 13 | 0623-432 | SCREW,RESERVOIR MOUNTING | 1 | $3.16 | |
| 14 | 0602-587 | O-RING, RESERVOIR-MASTER CYL. | 1 | $12.35 | |
| 15 | 0602-740 | RESERVOIR,HYD BRAKE | 1 | $60.95 | |
| 16 | 0602-741 | GASKET,COVER-MASTER CYL HYD BRAKE | 1 | $27.95 | |
| 17 | 0602-742 | COVER,MASTER CYL HYD BRAKE | 1 | $19.25 | |
| 18 | 0623-506 | SCREW,COVER-MASTER CYLINDER | 1 | $1.78 | |
| 19 | 0402-962 | HOSE,BRAKE-MASTER CYL | 1 | $79.95 |
