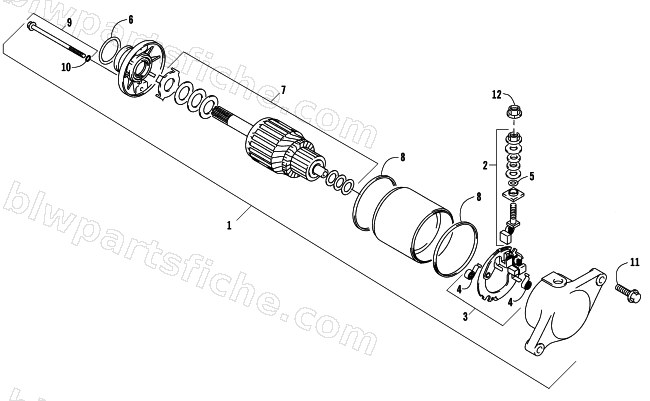

2003 Arctic Cat 400 FIS AUTOMATIC TRANSMISSION (2X4 ) — STARTER MOTOR ASSEMBLY
2003 400 FIS AUTOMATIC TRANSMISSION (2X4 )
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3545-016 | MOTOR ASSY, STARTING | 1 | $298.95 | |
| 2 | 3402-671 | BRUSH TERMINAL SET | 1 | $64.95 | |
| 3 | 3402-672 | BRUSH HOLDER SET | 1 | $79.95 | |
| 4 | 3008-551 | SPRING,BRUSH | 1 | $12.35 | |
| 5 | 3008-164 | O-RING | 1 | $6.95 | |
| 6 | 3423-272 | O RING,D:3,ID:24.5 | 1 | $3.44 | |
| 7 | 3008-099 | SHIM SET, STARTING MOTOR | 1 | $20.63 | |
| 8 | 3423-497 | O-RING | 1 | $20.63 | |
| 9 | 3423-498 | BOLT | 1 | $17.87 | |
| 10 | 3423-496 | O-RING | 1 | $3.71 | |
| 11 | 3007-369 | BOLT,CYLINDER HEAD COVER NO. 1 | 1 | $3.16 | |
| 12 | 3423-195 | NUT,STARTER MOTOR,6MM | 1 | $2.61 |
