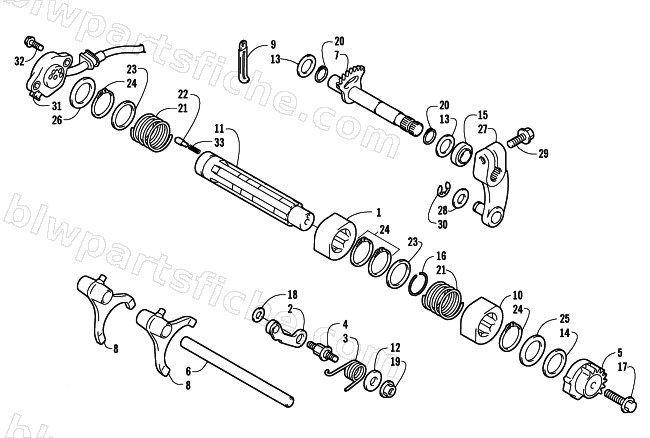

GEAR SHIFTING ASSEMBLY
2003 400 4X4 AUTOMATIC TRANSMISSION ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-640 | CAM, GEAR SHIFT REVERSE | 1 | $112.95 | |
| 2 | 3446-043 | STOPPER, GEAR SHIFT CAM | 1 | $30.95 | |
| 3 | 3446-283 | SPRING,GEAR SHIFT CAM STOPPER | 1 | $26.95 | |
| 4 | 3446-048 | SUPPORT, CAM STOPPER ARM | 1 | $32.95 | |
| 5 | 3402-642 | PLATE, GR SHIFT CAM STOPPER | 1 | $97.95 | |
| 6 | 3402-643 | SHAFT, GEAR SHIFT FORK | 1 | $35.95 | |
| 7 | 3402-644 | SHAFT, SUB T/M GEAR SHIFT FORK | 1 | $118.95 | |
| 8 | 3446-073 | FORK, SUB T/M GEAR SHIFT | 1 | $126.95 | |
| 9 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 10 | 3402-670 | CAM, SUB T/M GEAR SHIFT | 1 | $122.95 | |
| 11 | 3446-281 | SHAFT, SUB T/M GR SHF STOP | 1 | $164.95 | |
| 12 | 3423-438 | WASHER, 6.5 X 16 X 2.3 | 1 | $2.95 | |
| 13 | 1691-043 | SHIM, M12X20X1.0 | 1 | $3.44 | |
| 14 | 3423-446 | SHIM, (0.5) | 1 | $6.34 | |
| 15 | 3402-076 | OIL SEAL,M12X22X9 | 1 | $16.49 | |
| 16 | 3423-416 | C RING, SUB T/M CAM STOP | 1 | $5.78 | |
| 17 | 3007-380 | BOLT | 1 | $3.16 | |
| 18 | 3423-141 | WASHER, GEAR SHIFT CAM STOPPER-M6X14 | 1 | $3.95 | |
| 19 | 3007-373 | NUT | 1 | $3.16 | |
| 20 | 3423-876 | CIRCLIP,REV SHIFT CAM FASTENER | 1 | $3.44 | |
| 21 | 3446-280 | SPRING, SUB T/M SHIFT CAM | 1 | $10.95 | |
| 22 | 3423-044 | PIN,CAM GEAR,5MM | 1 | $5.37 | |
| 23 | 3402-382 | SHIM,M25X32X1 | 1 | $6.34 | |
| 24 | 3423-191 | CIRCLIP,FASTENER | 1 | $2.33 | |
| 25 | 3402-195 | SHIM,20MM | 1 | $4.95 | |
| 26 | 3423-421 | WASHER, SHIFT SHAFT (M25X34X1.0) | 1 | $5.51 | |
| 27 | 3402-434 | ARM, COMPRESSION,-SELECT | 1 | $79.95 | |
| 28 | 3423-204 | WASHER | 1 | $1.95 | |
| 29 | 3007-409 | BOLT | 1 | $3.16 | |
| 30 | 3423-153 | E-RING, SHIFT LEVER PIN,FASTENER | 1 | $3.57 | |
| 31 | 3402-686 | BASE, GEAR SHIFT TERM-ASSY | 1 | $220.95 | |
| 32 | 3423-418 | BOLT, BASE ASSY | 1 | $3.30 | |
| 33 | 3402-087 | SPRING,COMPRESSION,M4 | 1 | $3.30 |
