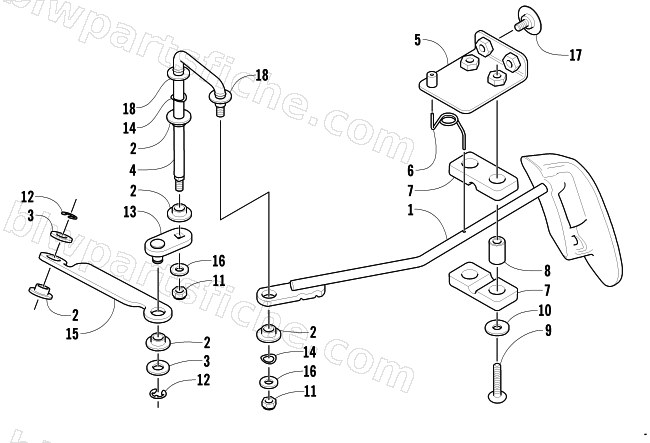

FRONT DRIVE SHIFT LINKAGE ASSEMBLY
2003 400 4X4 AUTOMATIC TRANSMISSION ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0502-291 | SHIFTER, 2 X/4 X-W/HANDLE | 1 | $67.95 | |
| 2 | 0423-091 | BUSHING,SHIFT | 1 | $3.16 | |
| 3 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 4 | 0402-821 | SHAFT,BELLCRANK | 1 | $43.95 | |
| 5 | 0502-234 | PLATE,MOUNTING-BLACK | 1 | $45.95 | |
| 6 | 0402-828 | SPRING, TORSION | 1 | $8.95 | |
| 7 | 0406-363 | BUSHING,HIGH/LOW SHIFT | 1 | $9.59 | |
| 8 | 0402-256 | COLLAR,HI LO SHIFT | 1 | $12.95 | |
| 9 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 10 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 11 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 12 | 0124-057 | E-RING | 1 | $1.64 | |
| 13 | 0502-295 | BELLCRANK-ASSY | 1 | $27.95 | |
| 14 | 0423-368 | WSHR, WAVE.33 X .50 X .08 | 1 | $1.95 | |
| 15 | 0502-396 | LINK, CROSS - BLACK | 1 | $48.95 | |
| 16 | 0423-348 | WSHR, FLAT-.25 X .56 X .07 Z&Y | 1 | $1.64 | |
| 17 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 18 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 |
