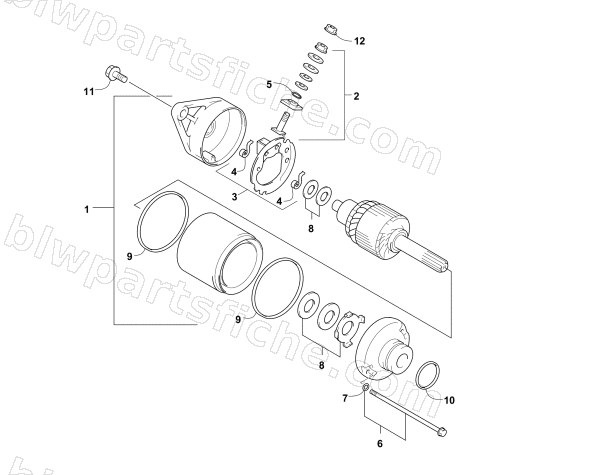

STARTER MOTOR ASSEMBLY
2003 300 (2X4 )
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3545-017 | MOTOR,ASSY STARTING | 1 | $595.95 | |
| 2 | 3402-671 | BRUSH TERMINAL SET | 1 | $64.95 | |
| 3 | 3402-799 | HOLDER SET,BRUSH | 1 | $112.95 | |
| 4 | 3008-551 | SPRING,BRUSH | 1 | $12.35 | |
| 5 | 3008-164 | O-RING | 1 | $6.95 | |
| 6 | 3423-536 | BOLT SET,START MOTOR | 1 | $17.95 | |
| 8 | 3008-099 | SHIM SET, STARTING MOTOR | 1 | $20.63 | |
| 9 | 3008-553 | O-RING, STARTER MOTOR | 1 | $19.25 | |
| 10 | 3008-363 | O-RING | 1 | $3.95 | |
| 11 | 3007-369 | BOLT,CYLINDER HEAD COVER NO. 1 | 1 | $3.16 | |
| 12 | 3423-195 | NUT,STARTER MOTOR,6MM | 1 | $2.61 |
