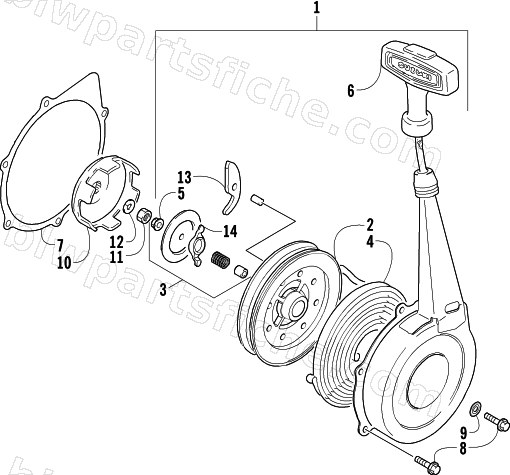

RECOIL STARTER ASSEMBLY
2003 300 (2X4 )
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3445-030 | STARTER ASSY,RECOIL | 1 | $331.95 | |
| 2 | 3445-019 | REEL,STARTER | 1 | $90.95 | |
| 3 | 3445-016 | RATCHET SET | 1 | $29.95 | |
| 4 | 3445-007 | SPRING, RECOIL | 1 | $69.95 | |
| 5 | 3007-373 | NUT | 1 | $3.16 | |
| 6 | 3445-020 | GRIP ASSY,STARTER | 1 | $82.95 | |
| 7 | 3445-028 | GASKET,RECOIL STARTER | 1 | $20.63 | |
| 8 | 3423-428 | SCREW, RECOIL STARTER | 1 | $3.30 | |
| 9 | 3003-290 | GASKET,CHECK VALVE,6MM | 1 | $3.85 | |
| 10 | 3445-022 | CAP,STARTER | 1 | $122.95 | |
| 11 | 3007-692 | NUT,10MM | 1 | $3.16 | |
| 12 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 13 | 3445-005 | RATCHET SET | 1 | $20.63 | |
| 14 | 3445-006 | GUIDE, RATCHET | 1 | $6.20 |
