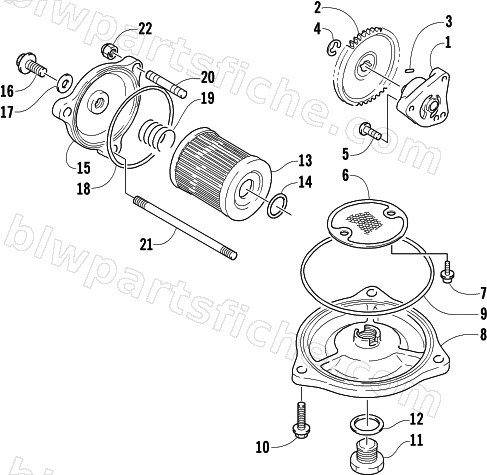

OIL PUMP ASSEMBLY
2003 300 (2X4 )
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3445-017 | OIL PUMP ASSY | 1 | $255.95 | |
| 2 | 3402-302 | GEAR,OIL PUMP DRIVEN | 1 | $140.95 | |
| 3 | 3423-285 | PIN,M2.5X11.8 | 1 | $3.71 | |
| 4 | 3423-860 | E RING | 1 | $3.30 | |
| 5 | 3007-555 | SCREW | 1 | $2.47 | |
| 6 | 3402-304 | STRAINER OIL | 1 | $20.63 | |
| 7 | 1691-164 | SCREW,M5X12 | 1 | $3.44 | |
| 8 | 3402-305 | CAP,OIL STRAINER | 1 | $54.95 | |
| 9 | 3423-278 | O RING,D:2.4 ID:82 | 1 | $13.95 | |
| 10 | 3007-515 | BOLT,WATER INLET CONNECTOR | 1 | $3.16 | |
| 11 | 3402-037 | PLUG,14MM | 1 | $10.97 | |
| 12 | 3402-012 | GASKET, OIL PLUG,M13.8X18.8X0.4 | 1 | $10.97 | |
| 13 | 3436-005 | FILTER COMP OIL | 1 | $17.87 | |
| 14 | 3423-270 | O RING,D:1.9,ID:13 | 1 | $4.95 | |
| 15 | 3402-303 | CAP,OIL FILTER | 1 | $58.95 | |
| 16 | 3007-407 | BOLT,GROUND | 1 | $3.16 | |
| 17 | 3402-444 | GASKET | 1 | $6.06 | |
| 18 | 3423-277 | O RING,D:2.4,ID:52.6 | 1 | $12.35 | |
| 19 | 3402-238 | SPRING,COMPRESSIOM,M18 | 1 | $2.61 | |
| 20 | 3423-861 | BOLT,STUD | 1 | $2.61 | |
| 21 | 3007-560 | STUD BOLT-M6X75 | 1 | $6.95 | |
| 22 | 3423-870 | NUT,6MM | 1 | $2.61 |
