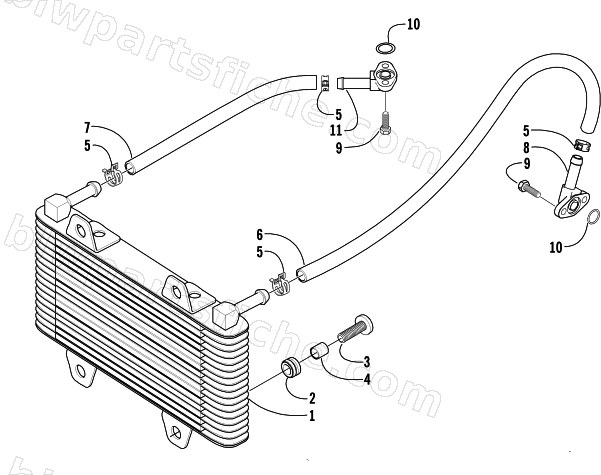

OIL COOLER ASSEMBLY
2003 250 (2X4 )
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-011 | OIL COOLER | 1 | $526.95 | |
| 2 | 0423-086 | GROMMET (EPDM 50) | 1 | $2.61 | |
| 3 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 4 | 0423-036 | COLLAR,.375" OD X.26" ID X.375" | 1 | $20.63 | |
| 5 | 0423-098 | CLAMP,HOSE(NORMA FBS 17-12) | 1 | $2.75 | |
| 6 | 0410-007 | HOSE,OIL- INPUT | 1 | $53.95 | |
| 7 | 0410-006 | HOSE,OIL- OUTPUT | 1 | $37.95 | |
| 8 | 0410-013 | FITTING,OIL - MACH | 1 | $58.95 | |
| 9 | 8471-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z&B | 1 | $0.68 | |
| 10 | 0423-089 | O-RING,OIL FITTING-1/2IDX11/16OD X 3/32 | 1 | $2.06 | |
| 11 | 0410-012 | FITTING,OIL ANGLED - MACH | 1 | $58.95 |
