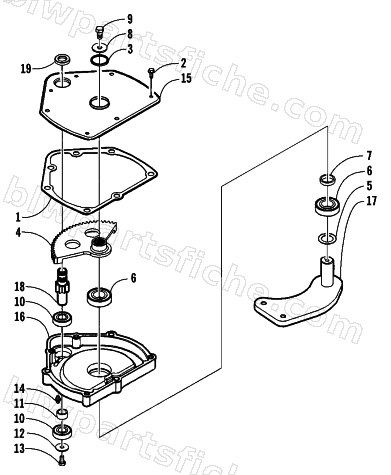

STEERING GEARBOX ASSEMBLY
2002 SBS 1000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3401-229 | STEERING GEARBOX ASM | 1 | $410.95 | |
| 1 | 3401-493 | GASKET | 1 | $5.95 | |
| 2 | 3401-494 | SCREW-HWH | 1 | $6.95 | |
| 3 | 3401-495 | SEAL | 1 | $13.95 | |
| 4 | 3401-496 | SECTOR-GEAR | 1 | $141.95 | |
| 5 | 3401-497 | WASHER-FLAT | 1 | $2.95 | |
| 6 | 3401-498 | BEARING-BALL | 1 | $36.95 | |
| 7 | 3401-499 | " SPACER-SHAFT, OUTPUT" | 1 | $6.95 | |
| 8 | 3401-500 | WASHER | 1 | $2.95 | |
| 9 | 3401-501 | " SCREW-LOCKING, THREAD" | 1 | $1.95 | |
| 10 | 3401-502 | BEARING-BALL | 1 | $20.95 | |
| 11 | 3401-503 | " SPACER-SHAFT, INPUT" | 1 | $5.95 | |
| 12 | 3401-504 | WASHER-FLAT | 1 | $3.95 | |
| 13 | 3401-505 | SCREW-HH | 1 | $1.95 | |
| 14 | 3401-066 | "FITTING-GREASE (1/4-28X.55,TAP" | 1 | $4.95 | |
| 15 | 3401-506 | " COVER-HOUSING, STEERING" | 1 | $19.95 | |
| 16 | 3401-507 | HOUSING-STEERING | 1 | $90.95 | |
| 17 | 3401-510 | ARM-PITMAN | 1 | $212.95 | |
| 18 | 3401-508 | GEAR-PINION | 1 | $137.95 | |
| 19 | 3401-509 | SEAL-OIL | 1 | $14.95 |
