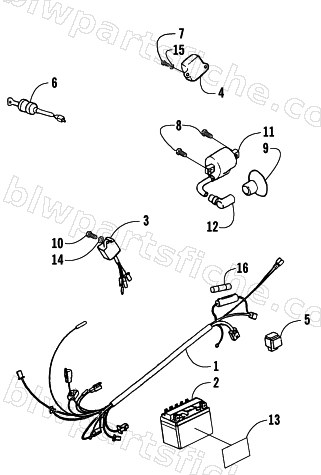

ELECTRICAL
2002 90 (90CC )
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-147 | MAIN WIRE HARNESS | 1 | $72.95 | |
| 2 | 3301-145 | BATTERY (YTX-4L-BS) | 1 | $112.95 | |
| 3 | 3301-135 | C.D.I UNIT | 1 | $87.95 | |
| 4 | 3301-146 | REGULATER RECTIFIER | 1 | $76.95 | |
| 5 | 3301-154 | STARTING RELAY | 1 | $62.95 | |
| 6 | 3301-151 | MAIN SWITCH ASS'Y | 1 | $45.95 | |
| 7 | 3301-316 | PAN PHILLIPS BOLT | 1 | $1.37 | |
| 8 | 3301-390 | HEX WASHER FACE BOLT | 1 | $1.95 | |
| 9 | 3301-137 | RUBBER CAP | 1 | $10.95 | |
| 10 | 3301-318 | PAN PHILLIPS BOLT | 1 | $1.37 | |
| 11 | 3301-136 | HIGH TENSION COIL | 1 | $56.95 | |
| 12 | 3301-138 | SPARK PLUG CAP | 1 | $18.95 | |
| 13 | 3301-463 | DECAL, WARNING BATTERY PROPNITION | 1 | $13.95 | |
| 14 | 3301-360 | SPRING WASHER | 1 | $1.95 | |
| 15 | 3301-475 | SPRING WASHER | 1 | $1.95 | |
| 16 | 3301-512 | FUSE,7 AMP-BUS | 1 | $8.95 |
