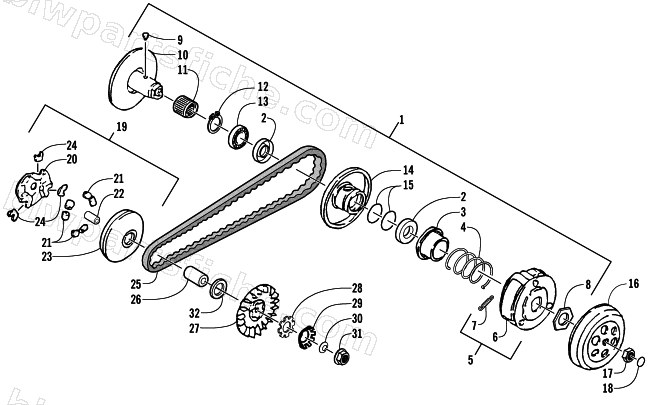

2002 Arctic Cat 90 (90CC ) — CLUTCH ASSEMBLY
2002 90 (90CC )
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-099 | DRIVE FACE ASS'Y (B) | 1 | $393.95 | |
| 2 | 3301-442 | OIL SEAL | 1 | $20.95 | |
| 3 | 3301-118 | SECONDARY SPRING SEAT | 1 | $13.95 | |
| 4 | 3301-117 | COMPRESSION SPRING | 1 | $20.95 | |
| 5 | 3301-112 | CLUTCH WEIGHT SET | 1 | $118.95 | |
| 6 | 3301-110 | CLUTCH CARRIER | 1 | $102.95 | |
| 7 | 3301-111 | CLUTCH WEIGHT SPRING | 1 | $3.95 | |
| 8 | 3301-277 | NUT | 1 | $6.34 | |
| 9 | 3301-116 | GUIDE PIN | 1 | $3.57 | |
| 10 | 3301-114 | SECONDARY FIX SLOT WHEEL | 1 | $169.95 | |
| 11 | 3301-420 | NEEDLE BEARING | 1 | $40.95 | |
| 12 | 3301-380 | INTERNAL CIR CLIP | 1 | $2.95 | |
| 13 | 3301-417 | RADIAL BALL BEARING | 1 | $52.95 | |
| 14 | 3301-115 | SECONDARY SLIDING SLOT WHEEL | 1 | $108.95 | |
| 15 | 3301-302 | OIL RING | 1 | $6.95 | |
| 16 | 3301-100 | CLUTCH COVER COMP | 1 | $66.95 | |
| 17 | 3301-325 | HEX NUT | 1 | $5.95 | |
| 18 | 3301-298 | O- RING | 1 | $1.95 | |
| 19 | 3301-102 | SLIDING DRIVE FACE ASS'Y (A) | 1 | $87.95 | |
| 20 | 3301-105 | CAM PLATE | 1 | $13.95 | |
| 21 | 3301-104 | WEIGHT ROLLER | 1 | $6.95 | |
| 22 | 3301-431 | BUSHING | 1 | $6.95 | |
| 23 | 3301-103 | PRIMARY SLIDING SLOT WHEEL | 1 | $52.95 | |
| 24 | 3301-106 | CAM PLATE SLIDER | 1 | $3.95 | |
| 25 | 3301-113 | V-BELT | 1 | $74.59 | |
| 26 | 3301-430 | BUSHING | 1 | $22.95 | |
| 27 | 3301-101 | PRIMARY FIX SHEAVE | 1 | $27.79 | |
| 28 | 3301-109 | CLAW WASHER | 1 | $1.78 | |
| 29 | 3301-107 | ONEWAY CLUTCH | 1 | $22.95 | |
| 30 | 3301-108 | CONE SPRING WASHER | 1 | $1.95 | |
| 31 | 3301-331 | HEX FLANGE NUT WITH SERRATION | 1 | $2.95 | |
| 32 | 3301-451 | CLUTCH A BUSH | 1 | $8.95 |
