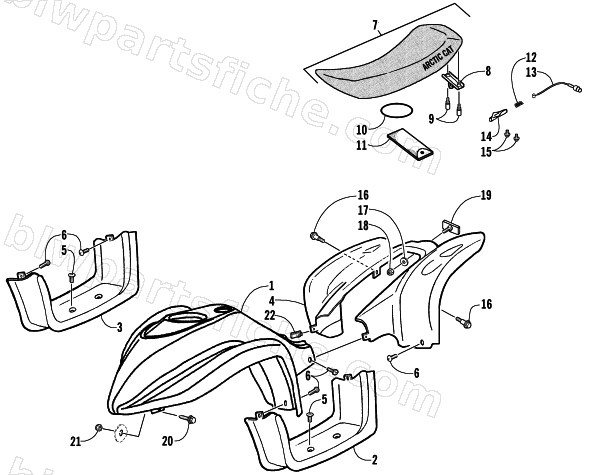

BODY AND SEAT ASSEMBLY
2002 90 (90CC )
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-250 | FRONT COVER (RED) | 1 | $181.95 | |
| 1 | 3301-248 | FRONT COVER (MARSH GREEN) | 1 | $181.95 | |
| 2 | 3301-253 | L. FLOOR PANEL | 1 | $29.95 | |
| 3 | 3301-252 | R. FLOOR PANEL | 1 | $29.95 | |
| 4 | 3301-264 | REAR COVER (RED) | 1 | $143.95 | |
| 4 | 3301-493 | REAR COVER (MARSH GREEN) | 1 | $143.95 | |
| 5 | 3301-319 | PAN FLAT HEAD PHILLIPS BOLT | 1 | $3.95 | |
| 6 | 3301-320 | PAN PHILPS BOLT | 1 | $3.95 | |
| 7 | 3301-257 | SEAT ASS'Y | 1 | $205.95 | |
| 8 | 3301-258 | SEAT BRACKET | 1 | $52.95 | |
| 9 | 3301-259 | SEAT BOLT | 1 | $6.95 | |
| 10 | 3301-304 | RUBBER STRIP | 1 | $3.95 | |
| 11 | 3301-210 | TOOL BAG | 1 | $29.95 | |
| 12 | 3301-262 | RESET SPRING | 1 | $2.95 | |
| 13 | 3301-261 | SEAT RELEASE CABLE | 1 | $20.95 | |
| 14 | 3301-263 | SEAT LOCK ASS'Y | 1 | $16.95 | |
| 15 | 3301-386 | HEX WASHER FACE BOLT | 1 | $5.95 | |
| 16 | 3301-275 | LADDER BOLT | 1 | $2.95 | |
| 17 | 3301-338 | PLAIN WASHER | 1 | $1.95 | |
| 18 | 3301-281 | NYLON NUT | 1 | $6.95 | |
| 19 | 3301-149 | REFLECTOR,RECTANGLE-REAR | 1 | $6.95 | |
| 20 | 3301-466 | HEX BOLT | 1 | $1.95 | |
| 21 | 3301-327 | HEX FLANGE NUT WITH SERRATION | 1 | $1.95 | |
| 22 | 3301-278 | U PLATE NUT | 1 | $3.95 |
