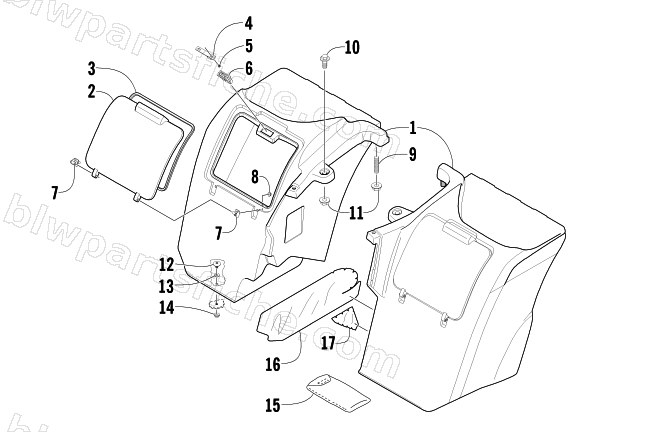

2002 Arctic Cat 500 AUTOMATIC TRANSMISSION TBX — STORAGE BOX ASSEMBLY
2002 500 AUTOMATIC TRANSMISSION TBX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0506-807 | BOX,RH STORAGE-W/GRAPHICS | 1 | $519.95 | |
| 1 | 0506-808 | BOX,LH STORAGE-W/GRAPHICS | 1 | $567.95 | |
| 2 | 0406-958 | HATCH, STORAGE BOX | 1 | $69.95 | |
| 3 | 0506-817 | KIT,GASKET | 1 | $17.87 | |
| 4 | 1406-010 | STRIKE, LATCH | 1 | $14.95 | |
| 5 | 0123-950 | SCREW-SELF TAP 6-20X1/2 | 1 | $0.26 | |
| 6 | 0406-990 | LATCH-ASSY | 1 | $69.95 | |
| 7 | 0506-674 | HINGE, WELDT | 1 | $47.95 | |
| 8 | 8424-502 | NUT,HEX-FLG M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 9 | 0423-399 | STUD,M8 1.25X37 | 1 | $35.95 | |
| 11 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 12 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 14 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 15 | 0444-122 | KIT, TOOL | 1 | $24.77 | |
| 16 | 0412-166 | SHIELD,HEAT | 1 | $108.95 | |
| 17 | 0412-167 | SHIELD,HEAT | 1 | $26.95 |
