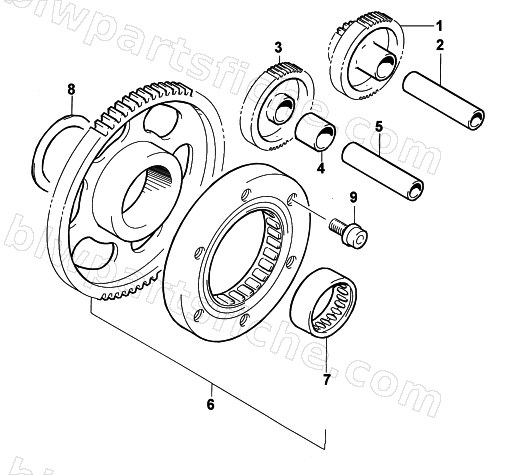

STARTER CLUTCH ASSEMBLY
2002 500 AUTOMATIC TRANSMISSION TBX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-813 | GEAR, STARTER IDLE NO. 1 | 1 | $122.95 | |
| 2 | 3423-331 | PIN,GEAR,12MM | 1 | $26.95 | |
| 3 | 3402-349 | GEAR,STARTER IDLE,NO.2 | 1 | $122.95 | |
| 4 | 3423-396 | SPACER, STARTER IDLE GEAR NO.2 | 1 | $17.87 | |
| 5 | 3423-397 | PIN | 1 | $26.95 | |
| 6 | 3402-457 | CLUTCH SET, STARTER | 1 | $479.95 | |
| 7 | 3402-063 | ROLLER BEARING ,M31X39X17.8 | 1 | $90.95 | |
| 8 | 3423-104 | WASHER, STARTER CLUTCH GEAR-M35X50 | 1 | $10.97 | |
| 9 | 3423-901 | BOLT,STARTER CLUTCH | 1 | $4.13 |
