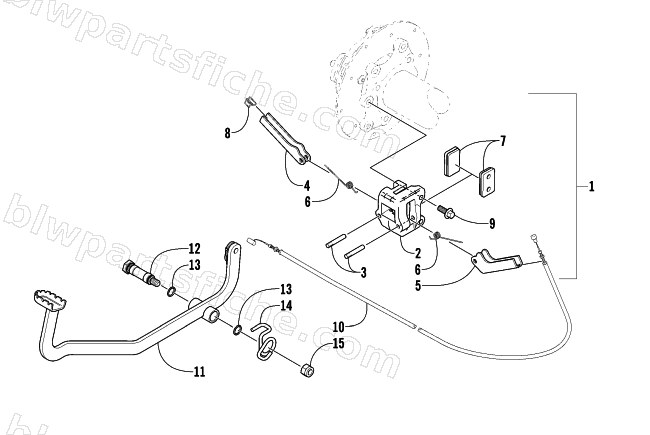

MECHANICAL BRAKE ASSEMBLY
2002 500 AUTOMATIC TRANSMISSION TBX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1502-865 | CALIPER,BRAKE-MECHANICAL | 1 | $180.95 | |
| 7 | 1402-602 | PAD,BRAKE-MECH PARK | 1 | $30.95 | |
| 8 | 0402-379 | WIRE FORM,CABLE | 1 | $4.13 | |
| 9 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 10 | 0487-022 | CABLE, BRAKE | 1 | $122.95 | |
| 11 | 0502-236 | LEVER, BRAKE-BLACK | 1 | $71.95 | |
| 12 | 0402-872 | AXLE-FOOTBRAKE | 1 | $37.95 | |
| 13 | 0423-096 | O-RING .489 I.D X .070 W PARKER 2-014 | 1 | $1.64 | |
| 14 | 0502-395 | SPRING, RETURN - BLACK | 1 | $37.95 | |
| 15 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 |
