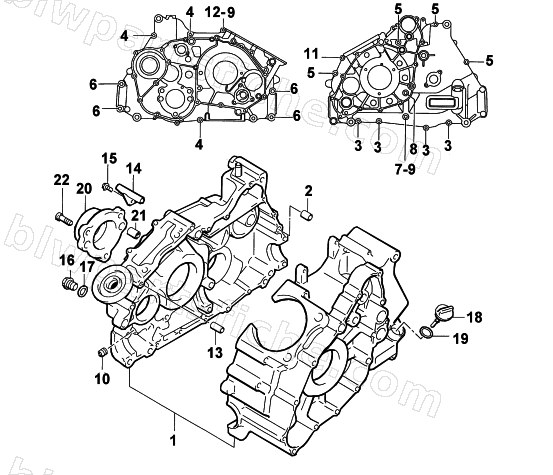

CRANKCASE ASSEMBLY
2002 500 AUTOMATIC TRANSMISSION TBX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3403-228 | CRANKCASE ASSY | 1 | $2,271.95 | |
| 2 | 3423-088 | PIN, CYLINDER HEAD KNOCK(ALIGMENT) | 1 | $4.54 | |
| 3 | 3423-878 | BOLT,CRANKCASE-M6X45 | 1 | $3.30 | |
| 4 | 3007-370 | BOLT,CYLINDER HEAD COVER NO. 2 | 1 | $3.95 | |
| 5 | 3423-909 | BOLT,CRANK M6X70 | 1 | $4.13 | |
| 6 | 3004-880 | BOLT, 8X50 | 1 | $3.85 | |
| 7 | 3005-332 | BOLT,8MM | 1 | $4.95 | |
| 8 | 3423-385 | BOLT, LH (M8X105) | 1 | $6.34 | |
| 9 | 3402-436 | WASHER | 1 | $1.92 | |
| 10 | 3423-386 | PLUG, RH | 1 | $10.97 | |
| 11 | 3423-387 | BOLT, LH (M8X137) | 1 | $8.95 | |
| 12 | 3423-388 | BOLT, RH (M8X125) | 1 | $4.95 | |
| 13 | 3004-822 | PIN,DOWEL(ALIGMENT) | 1 | $3.85 | |
| 14 | 3402-437 | PIPE, BREATHER | 1 | $37.95 | |
| 15 | 3423-389 | BOLT, BREATHER PIPE | 1 | $2.95 | |
| 16 | 3402-214 | PLUG,14MM | 1 | $9.59 | |
| 17 | 3402-012 | GASKET, OIL PLUG,M13.8X18.8X0.4 | 1 | $10.97 | |
| 18 | 3402-438 | GAUGE, OIL LEVEL | 1 | $30.95 | |
| 19 | 3423-055 | O RING D:3.1 ID:16.8 | 1 | $2.75 | |
| 20 | 3402-439 | HOUSING, SECONDARY SHAFT BEARING | 1 | $122.95 | |
| 22 | 3423-506 | BOLT, HOUSING | 1 | $3.30 |
