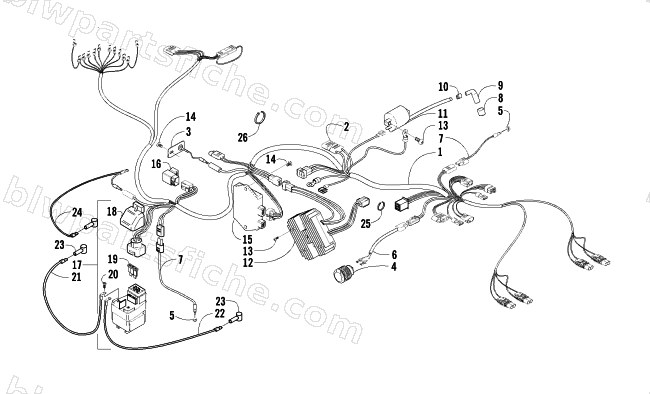

WIRING HARNESS ASSEMBLY
2002 400 4x4 MANUAL TRANSMISSION ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0486-084 | HARNESS, MAIN (500 M) | 1 | $579.95 | |
| 2 | 0486-029 | DIODE ASSY | 1 | $42.95 | |
| 3 | 0530-125 | KIT,FAN DIODE | 1 | $17.87 | |
| 4 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 5 | 0402-168 | RETAINER,SWITCH | 1 | $10.95 | |
| 6 | 0486-004 | HARNESS,12V RECEPTICAL | 1 | $10.97 | |
| 7 | 0409-009 | SWITCH,BRAKE-ASSY | 1 | $82.95 | |
| 8 | 3430-008 | SEAL SPARK PLUG | 1 | $12.35 | |
| 9 | 3430-007 | CAP ASSY, SPARK PLUG | 1 | $23.39 | |
| 10 | 3430-009 | SEAL, HIGH TENSION CORD | 1 | $10.97 | |
| 11 | 3530-004 | COIL ASSY, IGNITION | 1 | $180.95 | |
| 12 | 3530-059 | REGULATOR,VOLTAGE | 1 | $494.95 | |
| 13 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 14 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 15 | 3530-003 | CDI UNIT | 1 | $980.95 | |
| 16 | 3530-026 | RELAY ASSY, NEUTRAL START | 1 | $90.95 | |
| 17 | 3530-001 | RELAY ASSY, STARTING MOTOR | 1 | $169.95 | |
| 18 | 3530-010 | COVER, RELAY SWITCH | 1 | $12.35 | |
| 19 | 0630-098 | FUSE,30 AMP ATO/ATC | 1 | $8.21 | |
| 20 | 3423-020 | SCREW,6MM | 1 | $1.95 | |
| 21 | 0445-003 | CABLE,BATTERY-SOLENOID (16" RED #8) | 1 | $29.95 | |
| 22 | 0445-032 | CABLE,RELAY-STR MTR (RED) | 1 | $32.95 | |
| 23 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 24 | 0445-002 | CABLE,BATT/GRND(BLK) | 1 | $34.95 | |
| 25 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 26 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
