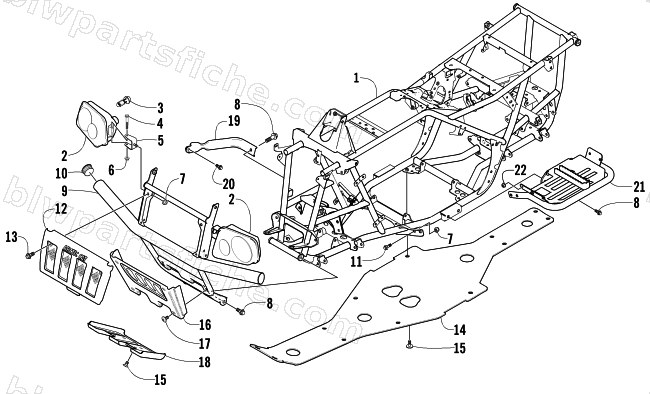

2002 Arctic Cat 400 4x4 MANUAL TRANSMISSION FIS () — FRAME AND RELATED PARTS
2002 400 4x4 MANUAL TRANSMISSION FIS ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0506-678 | FRAME-WELDT-FIS(BLACK) | 1 | $1,021.59 | |
| 2 | 0409-032 | HEADLIGHT,RH-ASSY | 1 | $135.95 | |
| 2 | 0409-031 | HEADLIGHT,LH-ASSY | 1 | $135.95 | |
| 3 | 0409-045 | BULB, HEADLIGHT (880) | 1 | $34.95 | |
| 4 | 8410-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 RIE BLK | 1 | $1.50 | |
| 5 | 0406-945 | BRKT, MTG,-HEADLIGHT | 1 | $29.95 | |
| 6 | 0423-375 | NUT,FLANGE NYLOCK-M8 | 1 | $1.23 | |
| 7 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 8 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 9 | 0506-859 | BRUSH GUARD,FR-BLACK | 1 | $181.95 | |
| 9 | 0506-544 | BUMPER,FR-BLACK (LG CH) | 1 | $324.95 | |
| 10 | 0406-130 | CAP,BUMPER(RDR17-1420) | 1 | $5.51 | |
| 11 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 13 | 0423-361 | SCREW,MACH-TSTRH M6-1.0 X 12 CL8.8 BLK | 1 | $0.95 | |
| 14 | 1406-030 | PANEL,BELLY | 1 | $187.95 | |
| 15 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 16 | 1406-420 | GRILLE, LOWER | 1 | $49.95 | |
| 17 | 0423-362 | SCREW, MACH-TSTH M8-1.25 X 30 EM- BLK | 1 | $8.21 | |
| 18 | 0406-834 | PLATE, SKID -FWD | 1 | $21.95 | |
| 19 | 1506-596 | CHANNEL,BUMPER MOUNTING-BLACK | 1 | $30.95 | |
| 20 | 8408-812 | SCREW,CAP-HFH M8X1.25X12 CL8.8 Z&Y | 1 | $1.78 | |
| 21 | 0506-534 | FOOTREST,RH-BLACK | 1 | $220.95 | |
| 21 | 0506-535 | FOOTREST,LH-BLACK | 1 | $155.95 | |
| 22 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 |
