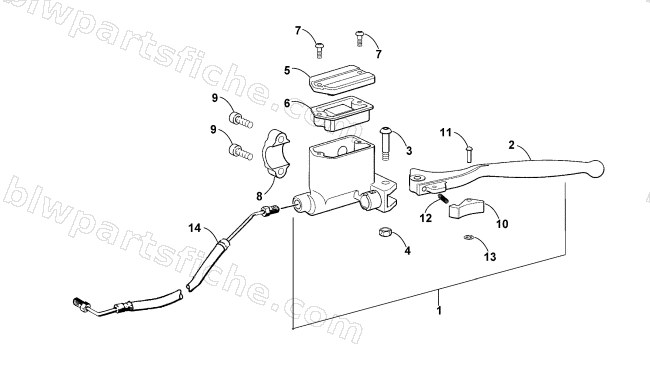

2002 Arctic Cat 400 4X4 MANUAL TRANSMISSION () — HYDRAULIC HAND BRAKE ASSEMBLY
2002 400 4X4 MANUAL TRANSMISSION ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0502-387 | MASTER CYLINDER - ASSEMBLY | 1 | $199.95 | |
| 2 | 0402-818 | LEVER, BRAKE | 1 | $64.95 | |
| 3 | 0623-430 | BOLT, LEVER MOUNTING | 1 | $4.68 | |
| 4 | 0402-941 | NUT,HEX LOCK-M6-1 | 1 | $1.95 | |
| 5 | 1402-030 | COVER,MASTER CYLINDER | 1 | $20.95 | |
| 6 | 0402-553 | BLADDER, RESERVOIR (OL) | 1 | $58.95 | |
| 7 | 0402-938 | SCREW,TSBH M4-.7X12 BLK | 1 | $2.95 | |
| 9 | 0402-939 | SCREW,SHCS M6-1X20 | 1 | $3.57 | |
| 10 | 1402-034 | LOCK, BRAKE LEVER | 1 | $6.75 | |
| 11 | 0402-936 | RIVET,.125 X .50L BLK | 1 | $0.65 | |
| 13 | 0402-937 | WASHER,LOCK-RETAINING | 1 | $0.65 | |
| 14 | 0402-854 | HOSE, BRAKE-MASTER CYL | 1 | $71.95 |
