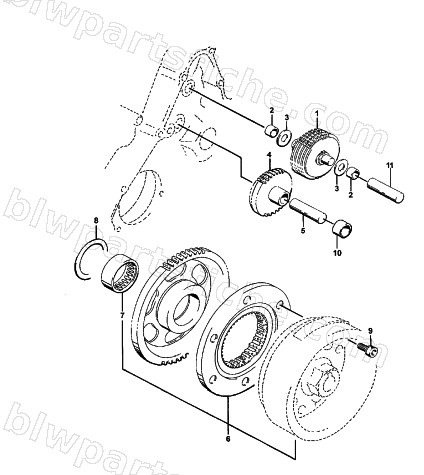

2002 Arctic Cat 400 2x4 MANUAL TRANSMISSION FIS () — STARTER CLUTCH ASSEMBLY
2002 400 2x4 MANUAL TRANSMISSION FIS ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-813 | GEAR, STARTER IDLE NO. 1 | 1 | $122.95 | |
| 1 | 3402-123 | LIMITER ASSY, ST ID GR, NO.1 | 1 | $321.95 | |
| 2 | 3402-125 | BUSH, LIMITER GEAR SHAFT | 1 | $50.95 | |
| 3 | 3423-103 | WASHER, THRUST, LIMITER GR SHAFT-M10X22 | 1 | $2.61 | |
| 4 | 3402-124 | GEAR, STARTER IDLE, NO.2 | 1 | $112.95 | |
| 4 | 3402-349 | GEAR,STARTER IDLE,NO.2 | 1 | $122.95 | |
| 5 | 3423-042 | PIN, STARTER IDLE GEAR, NO.2,12MM | 1 | $22.95 | |
| 6 | 3402-380 | CLUTCH SET,STARTER | 1 | $494.95 | |
| 7 | 3402-063 | ROLLER BEARING ,M31X39X17.8 | 1 | $90.95 | |
| 8 | 3423-104 | WASHER, STARTER CLUTCH GEAR-M35X50 | 1 | $10.97 | |
| 9 | 3423-901 | BOLT,STARTER CLUTCH | 1 | $4.13 | |
| 10 | 3423-352 | SPACER,M12.2X22X14 | 1 | $12.95 | |
| 11 | 3423-331 | PIN,GEAR,12MM | 1 | $26.95 |
