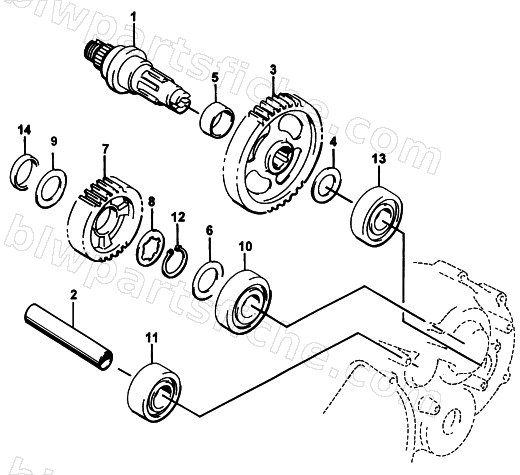

2002 Arctic Cat 400 2x4 MANUAL TRANSMISSION FIS () — SECONDARY TRANSMISSION ASSEMBLY

2002 400 2x4 MANUAL TRANSMISSION FIS ()

Scroll / pinch to zoom · drag or arrow keys to pan · double-click resets

Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.

Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

#	Part No.	Description	Qty	Price
1	3446-262	SHAFT,SUB T/M OUTPUT	1	$299.95
2	3446-066	GEAR, SUB T/M IDLE	1	$244.95
2	3446-109	SPACER, SUB T/M IDLE GR	1	$30.95
3	3446-072	GEAR, SUB T/M DRIVEN 42T	1	$212.95
4	3423-150	WASHER, SUB T/M DRIVE NO. 2 GR, L-M20X34	1	$2.61
4	3402-381	WASHER,M20X34X1	1	$3.57
5	3402-015	SPACER, M25X30X12.4	1	$23.39
6	3446-070	GEAR, SUB T/M DRIVE, NO. 2	1	$187.95
6	3446-248	GEAR,SUB T/M DRIVE NO.2	1	$151.95
6	3402-194	SPACER ,M20X26X17	1	$20.95
7	3446-108	DOG, SELECT SLIDING	1	$163.95
7	3446-249	DOG,SUB T/M SELECT SLIDING	1	$158.95
7	3446-110	GEAR, SUB T/M DRIVE, NO. 1	1	$214.95
8	3423-036	WASHER,25MM	1	$4.54
9	3446-103	BUSH, SUB T/M DRIVE, NO, 2	1	$48.95
9	3423-209	WASHER, SUB T/M DRIVE GR, RH-M25X36	1	$6.95
10	3402-046	BEARING, M20X52X15	1	$74.95
11	3402-979	BEARING,CENTER SHAFT LH	1	$87.95
12	3423-066	CIRCLIP,M25	1	$6.47
13	3423-126	WASHER, 2ND DRIVE GR-M20X30	1	$2.95
13	3402-195	SHIM,20MM	1	$4.95
14	3446-068	SPACER, SUB T/M DRIVE NO. 1 GR	1	$32.95
14	3446-246	SPACER,SUB T/M DRIVE NO.1 GR	1	$30.95
15	3423-148	SPACER, SUB T/M IDLE GEAR,20MM	1	$23.39
16	3446-067	GEAR, SUB T/M DRIVE, NO.1 28T	1	$220.95
16	3446-245	GEAR,SUB T/M DRIVE,NO.1	1	$190.95
17	3446-259	BUSH, SUB T/M DRIVE NO.1 GEAR	1	$64.95
17	3446-247	BUSHING,SUB T/M DRIVE NO.1 GR	1	$48.95
18	3402-045	BALL BEARING,M20X52X15	1	$66.95
