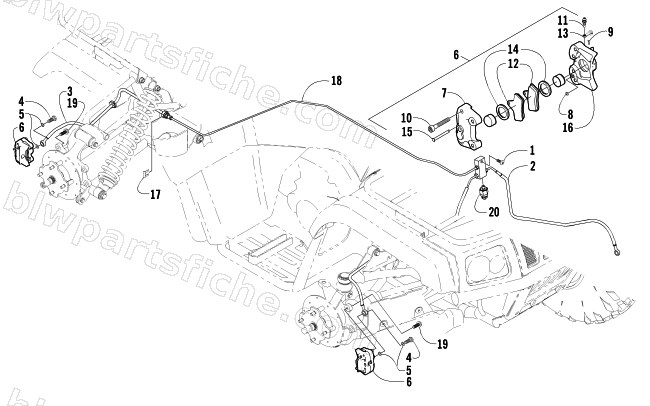

2002 Arctic Cat 400 2x4 MANUAL TRANSMISSION FIS () — HYDRAULIC FOOT BRAKE ASSEMBLY
2002 400 2x4 MANUAL TRANSMISSION FIS ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 2 | 0402-961 | HOSE,BRAKE-FRONT | 1 | $144.95 | |
| 3 | 0402-956 | HOSE,BRAKE-REAR | 1 | $79.95 | |
| 4 | 0423-409 | BOLT,BANJO (23MM) | 1 | $9.95 | |
| 5 | 0423-039 | WASHER,CRUSH | 1 | $3.30 | |
| 6 | 1436-422 | R/B 2502-574 | 1 | $190.95 | |
| 6 | 1436-423 | R/B 2502-575 | 1 | $432.95 | |
| 8 | 0402-490 | O-RING, HYD BRAKE CALIPER | 1 | $1.78 | |
| 9 | 0423-495 | PIN, COTTER -1/16" X 1/2" | 1 | $0.65 | |
| 10 | 0402-495 | PIN,HYD BRAKE CALIPER-(OL) | 1 | $3.57 | |
| 12 | 0402-882 | PAD, BRAKE | 1 | $29.95 | |
| 13 | 0502-609 | BLEEDER,CALIPER (FC) | 1 | $26.95 | |
| 14 | 0402-980 | O RING-SQUARE | 1 | $17.87 | |
| 15 | 0402-492 | SCREW, CAP-HSH-HYD BRAKE(OL) | 1 | $1.50 | |
| 17 | 0402-597 | CLIP, BRAKE LINE-PLATED | 1 | $9.59 | |
| 18 | 0402-955 | TUBE, BRAKE LINE-REAR | 1 | $36.95 | |
| 19 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 20 | 0402-306 | SWITCH,BRAKE PRESSURE | 1 | $129.95 |
