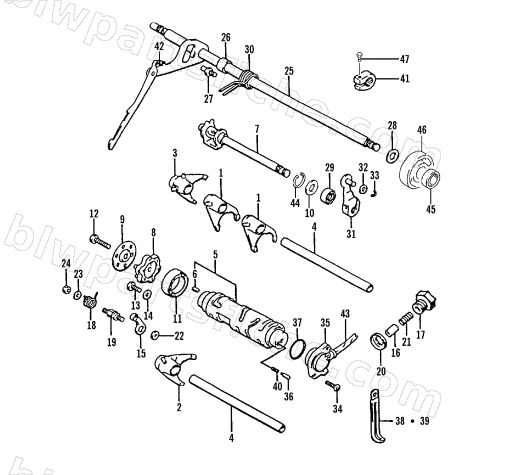

2002 Arctic Cat 400 2x4 MANUAL TRANSMISSION FIS () — GEAR SHIFTING ASSEMBLY
2002 400 2x4 MANUAL TRANSMISSION FIS ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3446-038 | FORK, GEAR SHIFT, NO. 2 | 1 | $140.95 | |
| 2 | 3446-039 | FORK, GEAR SHIFT, NO.3 | 1 | $140.95 | |
| 3 | 3446-040 | FORK, GEAR SHIFT, REVERSE | 1 | $140.95 | |
| 4 | 3446-052 | SHAFT, GEAR SHIFT FORK | 1 | $56.95 | |
| 5 | 3446-041 | CAM, GEAR SHIFT | 1 | $252.95 | |
| 6 | 3423-114 | MM (DOWEL) | 1 | $2.06 | |
| 7 | 3446-042 | CAM, REVERSE SHIFT | 1 | $98.95 | |
| 7 | 3446-241 | CAM,REVERSE SHIFT | 1 | $104.95 | |
| 8 | 3446-049 | PLATE, GEAR SHIFT CAM | 1 | $67.95 | |
| 9 | 3446-309 | GUIDE, GEAR SHIFT | 1 | $20.63 | |
| 10 | 3402-014 | SPACER, M12.2X17.3X30 | 1 | $10.95 | |
| 10 | 3423-357 | WASHER,REVERSE SHIFT CAM-M12X20 | 1 | $1.78 | |
| 11 | 3402-051 | BEARING,M25 | 1 | $62.95 | |
| 12 | 3423-884 | BOLT,CTUTCH RELEASE ARM-M6X20 | 1 | $2.61 | |
| 13 | 3007-574 | SCREW,6X12 | 1 | $2.47 | |
| 14 | 3423-135 | RETAINER, CNTR SHAFT BRG-M6X16 | 1 | $5.92 | |
| 15 | 3446-043 | STOPPER, GEAR SHIFT CAM | 1 | $30.95 | |
| 16 | 3446-117 | STOPPER, REVERSE SHIFT CAM | 1 | $20.95 | |
| 17 | 3446-046 | PLUG, OIL | 1 | $20.63 | |
| 17 | 3446-164 | STOPPER,REVERSE | 1 | $33.95 | |
| 18 | 3446-047 | SPRING, SHIFT CAM STOPPER ARM | 1 | $12.35 | |
| 19 | 3446-048 | SUPPORT, CAM STOPPER ARM | 1 | $32.95 | |
| 20 | 3402-012 | GASKET, OIL PLUG,M13.8X18.8X0.4 | 1 | $10.97 | |
| 21 | 3402-088 | SPRING,COMPRESSION,M5 | 1 | $9.59 | |
| 22 | 3423-141 | WASHER, GEAR SHIFT CAM STOPPER-M6X14 | 1 | $3.95 | |
| 23 | 3423-142 | WASHER, CAM STOPPER ARM SUPPORT-M6X18 | 1 | $2.06 | |
| 24 | 3007-373 | NUT | 1 | $3.16 | |
| 25 | 3446-286 | SHAFT,GEAR SHIFT | 1 | $169.95 | |
| 26 | 3446-054 | SPACER, GEAR SHIFT SHAFT | 1 | $20.63 | |
| 27 | 3446-056 | STOPPER, GEAR SHIFT ARM | 1 | $12.35 | |
| 28 | 3402-068 | OIL SEAL,M13X22X6 | 1 | $17.87 | |
| 29 | 3402-076 | OIL SEAL,M12X22X9 | 1 | $16.49 | |
| 30 | 3402-094 | SPRING,TORSION,M26 | 1 | $12.35 | |
| 31 | 3446-055 | ARM COMP, REVERSE GEAR SHIFT | 1 | $118.95 | |
| 32 | 3423-204 | WASHER | 1 | $1.95 | |
| 32 | 3423-209 | WASHER, SUB T/M DRIVE GR, RH-M25X36 | 1 | $6.95 | |
| 33 | 3423-860 | E RING | 1 | $3.30 | |
| 34 | 3007-443 | SCREW | 1 | $2.06 | |
| 35 | 3430-015 | BASE ASSY, GEAR SHIFT TERM | 1 | $158.95 | |
| 36 | 3423-044 | PIN,CAM GEAR,5MM | 1 | $5.37 | |
| 37 | 3423-059 | O RING, ID:25.7, DD:2.4 | 1 | $17.95 | |
| 38 | 3004-787 | CLAMP,M6 | 1 | $4.26 | |
| 39 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 40 | 3402-087 | SPRING,COMPRESSION,M4 | 1 | $3.30 | |
| 41 | 3402-008 | HUB,GEAR SHIFT | 1 | $20.63 | |
| 42 | 3402-093 | SPRING,PULL,M6 | 1 | $12.35 | |
| 43 | 0706-990 | FOIL 6 X12 (0619-727) | 1 | $16.95 | |
| 44 | 3423-876 | CIRCLIP,REV SHIFT CAM FASTENER | 1 | $3.44 | |
| 46 | 3402-385 | BEARING,REAR CUSHION LEVER,FRONT,NEEDLE, | 1 | $37.95 |
